Automatic Prefilled Syringe Stoppering and Sealing Machine

Product Introduction:
The Automatic Prefilled Plastic Syringe Stoppering and Sealing Machine is an independent closure module for filled syringes and flush devices in nests or trays. It automatically handles positioning, stopper or cap feeding, sealing, re-nesting and tray discharge. Servo control, online detection and optional O-RABS or inspection systems help improve closure consistency and reduce manual handling.

Key Selling Points:

Independent stoppering and sealing component
Dedicated to prefilled plastic syringes
Automatic stopper or cap feeding
Controlled stopper insertion and sealing
Automatic syringe positioning
Automatic re-nesting and tray discharge
Stopper-transfer and position detection
Low-friction stopper handling
Optional vision, seal and leak inspection
Optional automatic rejection
Optional O-RABS and laminar airflow
Easy connection with an upstream filling machine


Availability:



Inquire Add to Basket

syringe filling machine with isolator

Product Description

Technical Parameters

FAQ

Product Introduction

The Automatic Prefilled Plastic Syringe Stoppering and Sealing Machine is a standalone downstream closure module for filled plastic prefilled syringes, saline flush syringes and disposable catheter flush devices arranged in honeycomb nests or trays.

The machine receives filled syringes from an upstream filling unit and automatically performs syringe positioning, stopper or cap feeding, stopper detection, controlled insertion, sealing, re-nesting and tray discharge according to the selected closure format.

By separating closure operations from liquid filling, manufacturers can independently upgrade the stoppering and sealing section or connect it with an existing syringe filling machine. Servo-controlled motion, protected stopper transfer, online detection and optional O-RABS, inspection and rejection systems support stable closure quality and reduced manual intervention.

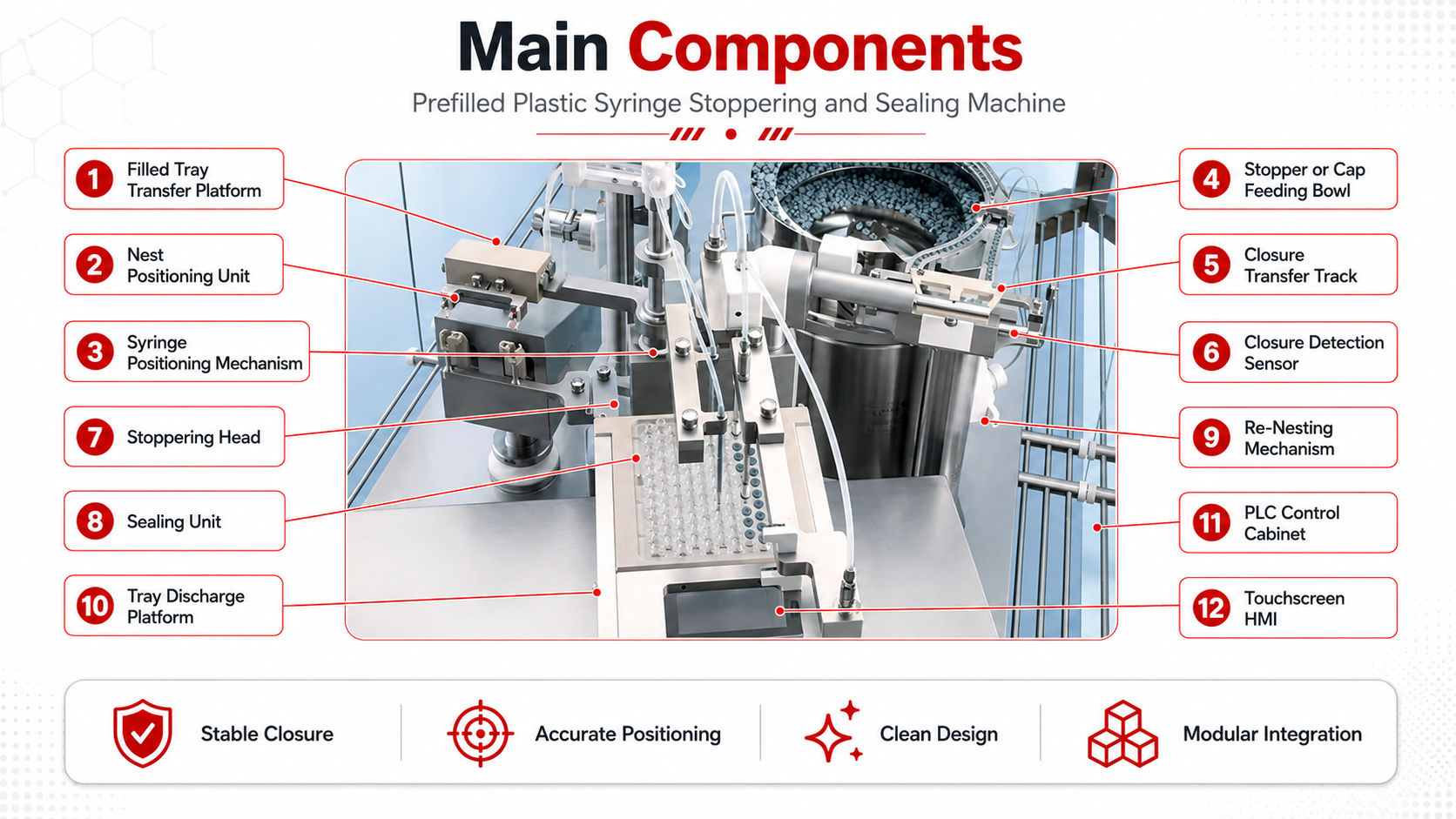

Main component diagram of a prefilled plastic syringe stoppering and sealing machine, showing the tray transfer platform, nest positioning unit, stopper feeding bowl, closure track, stoppering head, sealing unit and control system.

Product Features

Independent Closure Module
Designed for stopper or cap feeding, insertion, sealing and tray handling without liquid filling.
Automatic Closure Feeding
Automatically sorts, orients and transfers stoppers or caps.
Low-Friction Transfer
Reduces stopper friction, particle generation and contamination risks.
Servo-Controlled Operation
Ensures accurate syringe positioning and consistent closure depth.
Online Detection
Monitors closure feeding and positioning during production.
Automatic Re-Nesting
Returns sealed syringes to the honeycomb nest automatically.
Flexible Tray Discharge
Supports manual unloading or connection to downstream equipment.
Optional Inspection
Vision, seal and leak inspection systems are available.
Automatic Rejection
Removes products with missing or incorrectly positioned closures.
Clean-Zone Protection
Optional laminar airflow or O-RABS protects critical working areas.

Technical Parameters

Parameter	Specification
Equipment Function	Stopper/cap feeding, stoppering, sealing and tray discharge
Applicable Products	Filled prefilled plastic syringes and flush devices
Container Format	Honeycomb nest or tray
Syringe Volume	0.1–20 mL
Reference Capacity	2,000–30,000 pcs/hour
Closure Type	Stopper or cap
Stopper Feeding	Automatic
Stoppering & Sealing	Customized to syringe and closure design
Syringe Handling	Servo and pneumatic positioning
Re-Nesting	Automatic
Tray Discharge	Manual or automatic
Detection	Stopper transfer and position detection
Optional Inspection	Seal/leak inspection and automatic rejection
Control System	PLC touchscreen with servo control
Clean-Zone Options	Laminar airflow or O-RABS
Main Material	SUS304 stainless steel
Critical Parts	316L or compatible material
Upstream Equipment	Prefilled syringe filling machine
Downstream Equipment	Rod insertion, inspection, labeling or cartoning
Power Supply	Customized
Machine Size	Based on final configuration

FAQ

What does the Automatic Prefilled Plastic Syringe Stoppering and Sealing Machine do?

The machine receives filled plastic syringes and automatically completes syringe positioning, stopper or cap feeding, closure insertion, sealing, re-nesting and tray discharge.

What syringe products can the machine handle?

It is designed for prefilled plastic syringes, saline flush syringes, catheter flush devices and other compatible syringe products arranged in honeycomb nests or trays.

Does this machine include liquid filling?

No. It is an independent downstream closure module. Liquid filling is completed by an upstream prefilled syringe filling machine.

What syringe volumes are supported?

The machine can be configured for syringe formats from 0.1 to 20 mL, subject to syringe dimensions, nest layout and closure design.

What types of closures can it handle?

It can be customized for rubber stoppers, plastic caps or other compatible closure formats. The feeding bowl, transfer track and sealing unit are designed according to the confirmed closure sample.
