Complete Cartridge Filling Line Process: From Washing to Final Packaging

You must know about equipment, quality, and efficiency to do well with a Cartridge Filling Line. The best machine keeps your material clean. It also helps you stop expensive waste. Stainless steel and PTFE parts keep your product safe. Dosing accuracy helps you earn more money and makes people happy. More companies want safe, single-dose medicines, so the market is growing fast. Shanghai Maya has lots of experience with pharmaceutical filling lines and cleanroom solutions. This makes your process easy and dependable.

Key Takeaways

• Learn the main steps in the cartridge filling line. These steps are washing, filling, capping, and packaging. Each step is important for safety and accuracy.

• Use the correct equipment for each step. Manual tools work well for small batches. Automatic machines are better for bigger jobs. This makes work faster and easier.

• Keep everything clean by using advanced washing methods. Ultrasonic cleaning helps remove dirt and germs from every cartridge.

• Control the temperature when preparing oil. Heating the oil the right way makes filling easier. It also helps reduce waste.

• Use automated systems for filling and checking cartridges. These systems make the process more accurate and faster. They also help stop leaks.

• Follow rules for regulatory compliance and cleanroom standards. These rules keep the product safe and high quality.

• Use good packaging and labeling methods. Clear labels and strong packaging protect the product. They also give important information.

• Check and maintain your filling line often. Regular checks help find problems early. This keeps production smooth.

Cartridge Filling Line Overview

Shanghai Maya is a trusted leader in cartridge filling lines. They also make pharmaceutical solutions. You can count on Maya’s experience and technology. They help you with every step. Maya has given complete solutions to clients in almost 60 countries. Many companies pick Maya for stable and efficient production lines. These lines also follow the rules.

Main Stages

A cartridge filling line has a clear process. Each stage is important for safety and accuracy. Here are the main stages in a typical filling line:

1. Getting the oil ready and heating it.

2. Getting the system ready.

3. Putting oil into cartridges.

4. Putting on caps and sealing the cartridge.

5. Cleaning and packing.

Tip: If you know each stage, you can find problems early. This helps your production keep going smoothly.

Key Equipment

You need the right equipment for every stage. Maya has many machines for different needs and budgets. You can use manual tools for small batches. You can also use automatic systems for big jobs. Here are some important machines you might use:

• Cartridge filling machines for exact dosing.

• Inline filling machines for nonstop work.

• Rinser filler capper machines to clean, fill, and seal in one line.

• Weighing filling machines for correct volume.

• Piston filling machines for thick liquids.

• Capping machines for tight closure.

• Labeling machines for clear product names.

Some machines have advanced features like 10-head peristaltic or rotary piston pump fillers. These machines fill many cartridges at the same time. Some systems have denesting and renesting tools. These tools move cartridges through the line easily. Automated inspection tools check for leaks and problems. This way, you can trust the quality of your final product.

Maya’s modular designs let you change parts fast. You can use different cartridge sizes or switch products with less waiting. You get speed and flexibility. This helps you keep up with market changes.

Note: Maya’s success around the world shows you can trust their filling solutions for any project.

If you know the main stages and key equipment, you will do well in the cartridge filling line process.

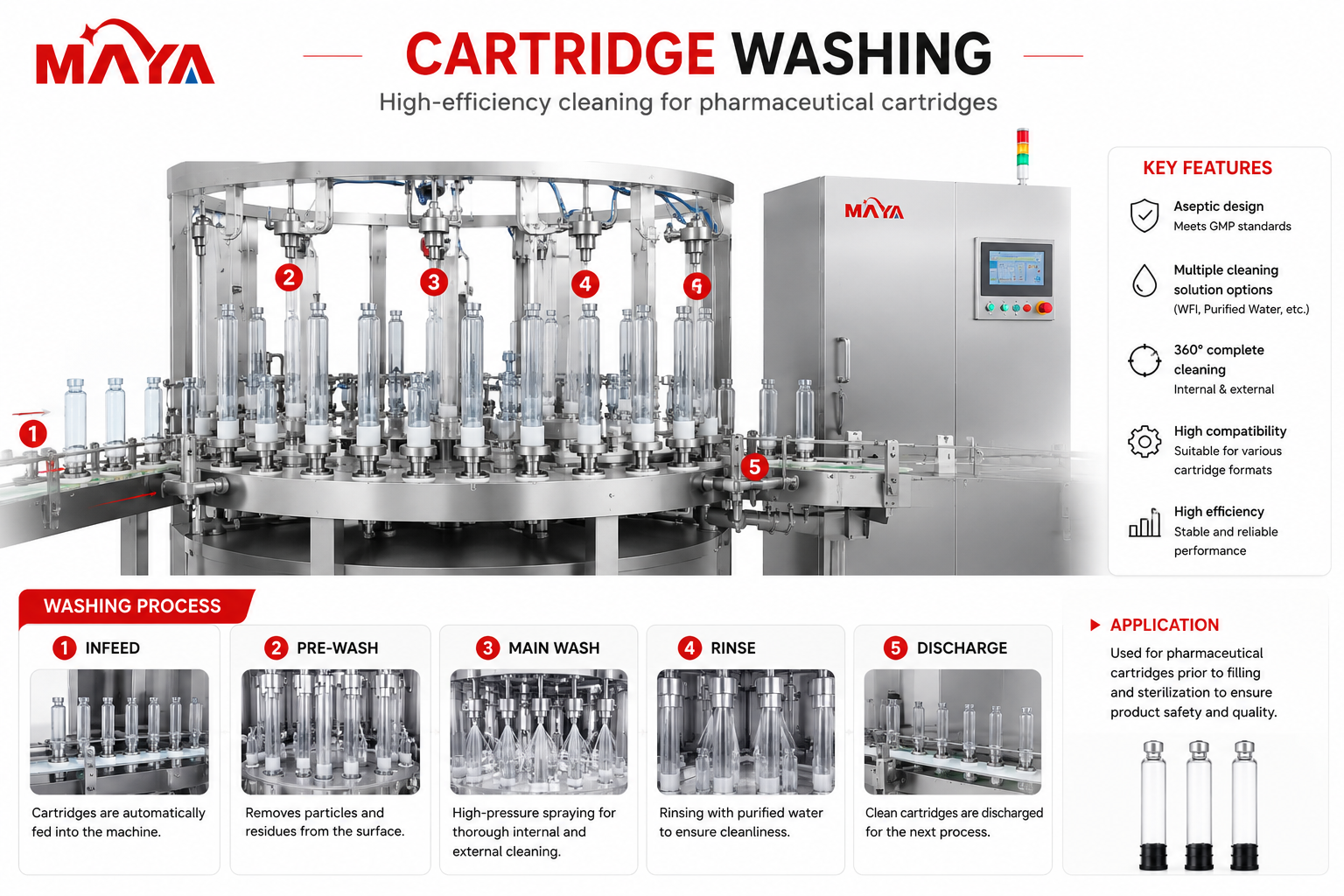

Cartridge Washing

You have to make sure every cartridge is very clean before filling. This step keeps people safe and makes good products. Maya gives you special washing machines and cleanroom help. You can trust these tools to keep your process very clean.

Washing Methods

First, you put glass cartridges on a spinning table. Grippers grab each cartridge and turn it upside down. This helps you wash the inside and outside. The cartridges go through many washing stations. Each station uses a different way to clean off dirt and germs. At first, you use recycled water. This saves water and gets the cartridges ready for better cleaning.

Ultrasonic Cleaning

Ultrasonic cleaning uses sound waves to shake off dirt and germs. You put the cartridges in a bath. The sound waves make tiny bubbles that scrub every part. This way, even small spaces get clean. Brushes cannot reach these spots. Ultrasonic cleaning makes the cartridges very clean. You can use this method for hard jobs.

Automated Systems

Automated systems help keep every cartridge very clean. You rinse the cartridges with recycled Water for Injection (WFI). Sometimes you do this step more than once for extra cleaning. Then you rinse with fresh WFI. This gets rid of any last bits of dirt. Next, you blow dry the inside with filtered air. Automated systems make sure you do not skip any steps. You get the same clean results every time.

Drying & Inspection

After washing, you need to dry and check every cartridge. You cannot skip this step if you want clean cartridges.

Air Dryers

You use filtered air dryers to blow water out of each cartridge. This step is important for keeping things clean. Wet places can grow germs. Drying with clean air keeps the cartridges safe and ready.

Visual Tools

You use visual tools to look for spots or water drops. You also check for cracks or dirt. You must make sure every cartridge is clean and safe. You can use cameras or look by hand. This step helps you keep high cleaning standards.

Tip: You must follow strict cleaning rules in medicine factories. This keeps your products safe and follows all the rules.

You have to clean, dry, and check each cartridge many times. You use both machines and people to make sure nothing is missed. Maya’s washing machines and cleanroom help let you get the best cleaning. You can trust Maya to help you meet every clean rule in your factory.

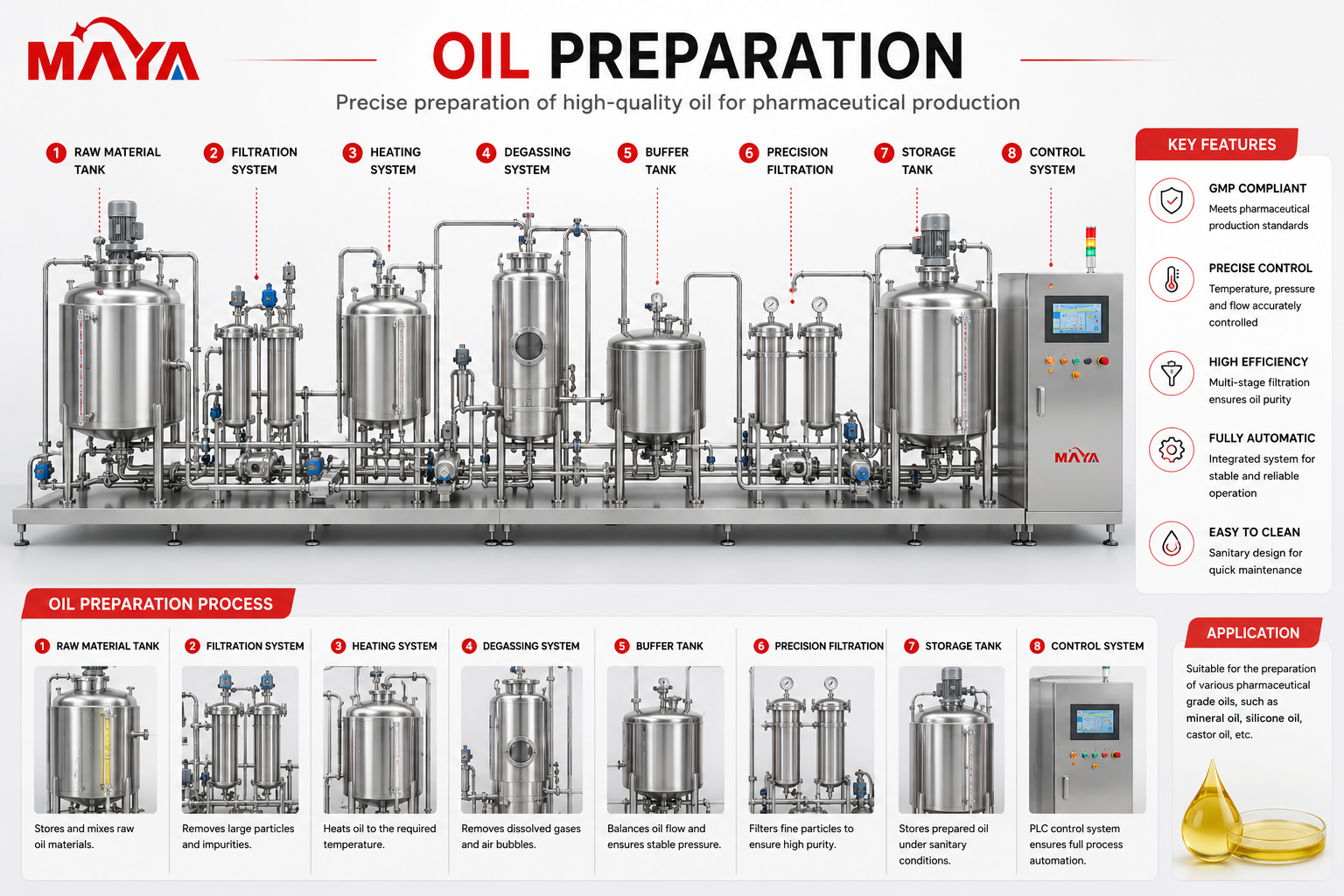

Oil Preparation

You need to prepare your oil carefully before you start the filling process. This step is important for every manufacturing line. If you do not control the oil, you can face problems in production. Maya offers advanced solution preparation systems that help you get the oil ready for filling. These systems support high standards in pharmaceutical manufacturing.

Heating Techniques

Heating oil is a key part of manufacturing cartridges. You must keep the oil at the right temperature for smooth filling. If the oil is too thick, it will not flow well. If it is too thin, you can lose control during filling.

Temperature Control

You should use a pump heating system for your oil. This system uses both conduction and convection. It heats the oil evenly. You can keep the oil at 120°F. This temperature works well for many types of oil, even thick ones like distillate. A short and direct oil path from the tank to the needle helps you keep the temperature steady. This setup is important for every manufacturing line. You get a smooth flow and fewer problems during filling.

Tip: Heating is not just for thick oils. You need it for all types of oil in cartridge manufacturing. Good temperature control means better filling and less waste.

Mixing Systems

You must mix the oil well before filling. Mixing systems keep the oil even and stop it from separating. You can use gentle mixers that do not make bubbles. Bubbles can cause problems in the filling line. Maya’s solution preparation systems include mixing tools that work with different oil types. These systems help you keep your manufacturing process stable and your production line running.

Quality Assurance

You must check the oil before you start filling. Quality assurance is a big part of pharmaceutical manufacturing. You want every drop to be the same. If you do not check, you can get pooling or uneven drops. This can cause problems in the final product.

You can use a UV spectrophotometer probe in the oil tank. This tool checks the oil in real time. It measures how much light the oil absorbs. You can see if the oil has the right amount of medicine. You can also use cameras to check the size of drops. These steps help you control drug loading in each cartridge. You also need to watch for solid drops and smooth settling. If you see problems, you can fix them before filling starts.

You should always minimize vessel currents. This helps drops form the right way and keeps your manufacturing line safe.

You need to follow these steps for every batch. Maya’s solution preparation systems help you meet strict rules in pharmaceutical production. You get better filling results and safer products for your customers.

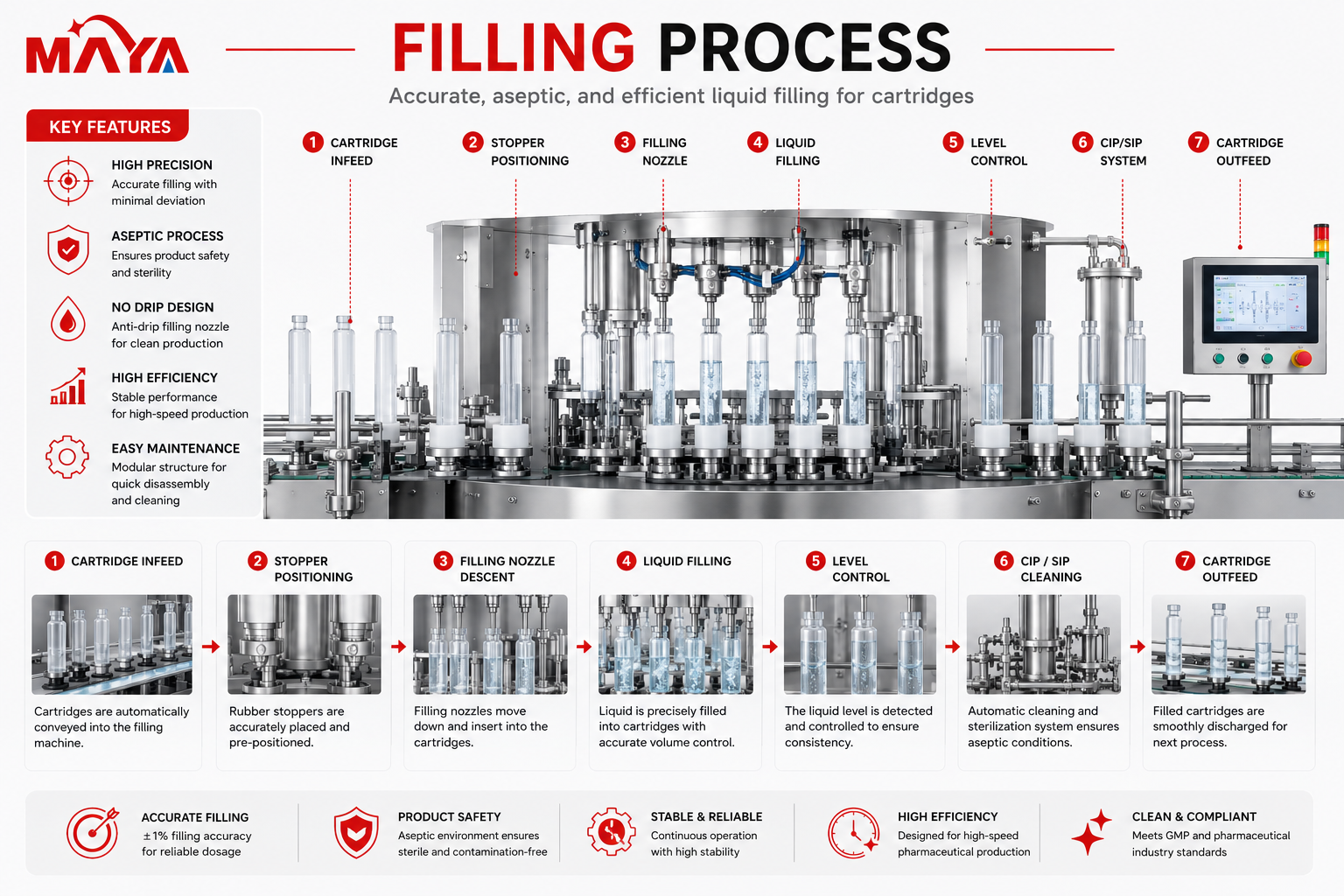

Filling Process

You need to know how the cartridge filling line works. This helps you get good results. The process starts with priming. It ends with accurate filling. You can use a vape cartridge filling machine. This machine makes your work easier and faster. Maya gives you a full solution for every step.

Priming Line

You must prime the cartridge filling line before filling. Priming stops air bubbles. It keeps cartridges safe. Here are the main steps:

1. Prepare and heat the oil. Warm the oil to the right temperature. This helps the oil flow into each cartridge.

2. Prime the system. Run oil through tubing and nozzles. This removes air bubbles. It gets the vape cartridge filling machine ready for filling.

Priming helps you get accurate dosing. You avoid mistakes. Your cartridge filling line stays efficient.

Filling Machines

You can pick different machines for your cartridge filling line. Maya has many options for filling cannabis or nicotine oils. You can choose automatic systems or manual tools. Each type has special features.

Automated Filling

Automatic machines make your cartridge filling line fast and reliable. You can fill thousands of cartridges every hour. These machines use sensors and pumps to control oil. You get steady results and save labor costs. Maya’s vape cartridge filling machine uses advanced automation. This keeps your process efficient.

Automatic filling machines help you work fast and efficiently. You can trust Maya’s technology for your cartridge filling line.

Manual Tools

Manual tools are good for small batches. You fill cartridges by hand. You can use syringes or simple pumps. Manual tools give you flexibility. You can fill special cartridges or test new products. Maya offers manual solutions if you need them.

You can switch between automatic and manual tools. This gives you more control. You can handle different cartridge types.

Accuracy & Efficiency

You must keep your cartridge filling line accurate and efficient. You want every cartridge to have the right amount of oil. You also want to stop leaks and waste.

Volume Control

You use calibrated pumps and sensors in your vape cartridge filling machine. These tools help you control oil volume. You set machine parameters to avoid mistakes. Adjustable nozzles and flow rate controls stop oil spills and air pockets. Precision dispensing systems cut waste. High-speed machines fill cartridges quickly and accurately. You can use different cartridge designs in your filling line. Automatic systems help with quality control and following rules.

• Automatic filling machines use calibrated pumps for precise oil dispensing.

• Temperature control keeps oil steady and stops clogging.

• Pre-set machine settings guarantee consistent fills.

• Adjustable nozzles and flow rate controls stop oil spills and air pockets.

• Precision dispensing systems cut waste.

• High-speed machines fill cartridges fast and stay accurate.

• Compatibility with different cartridge designs lets you fill many types.

• Automatic systems help with quality control and compliance.

Leak Prevention

You must stop leaks in your cartridge filling line. Leaks waste oil and damage cartridges. You need to watch for common problems.

• Clogging happens when oil is too thick or you use the wrong filling method.

• Leaking comes from overfilling or broken seals.

• Temperature changes can cause leaks. Oil expands or shrinks and escapes from the cartridge.

You can use sensors and tight seals in your vape cartridge filling machine. This keeps your cartridge filling line safe and efficient.

Maya’s filling technology helps you stop leaks and control volume. You get steady results and high efficiency. You can change your cartridge filling line for different products. Maya supports automation and machine customization. You can trust Maya for your cartridge filling line needs.

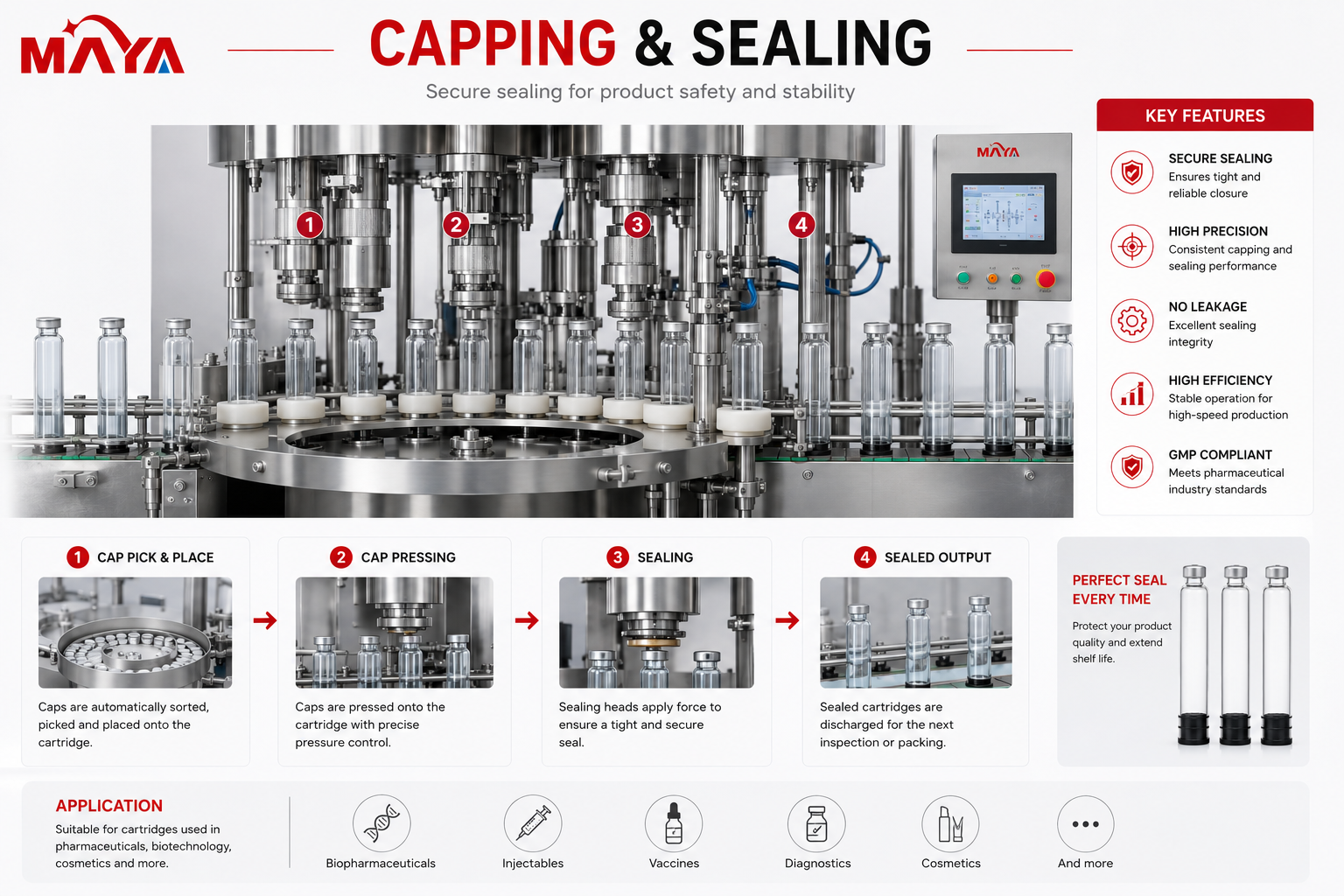

Capping & Sealing

You have to cap and seal every cartridge to keep your product safe. This step keeps the medicine inside and stops germs from getting in. Maya has special capping and sealing machines for cartridges. You can pick the best equipment for your production line.

Capping Equipment

There are different capping machines for different batch sizes and speeds. Each one helps you work faster and make good products.

Automatic Cappers

Fully automatic machines are best for big jobs. These machines can cap thousands of cartridges every hour. For example, the ARF-B machine can cap and seal up to 8,400 containers in one hour. The VRK machine can do up to 36,000 containers in an hour. These machines work fast and do not damage the cartridges. You get good seals and high output. Automatic cappers help your line run without stopping.

Manual Devices

Manual capping tools are good for small batches or special cartridges. You can use hand tools or simple machines. Manual capping lets you control each cartridge. You can try new products or fill special orders. If you follow the right steps, you still get good results.

Sealing Methods

You must seal every cartridge to keep the medicine fresh and safe. Sealing stops leaks and protects your product.

Heat Sealing

Heat sealing uses high heat to melt and stick the cap to the cartridge. This makes a tight seal. It stops leaks and keeps out germs. Heat sealing works for many cartridge types.

Pressure Sealing

Pressure sealing uses force to push the cap onto the cartridge. You do not need heat for this. This method is quick and clean. Pressure sealing is good for making lots of cartridges and keeps things simple.

Good sealing gives you many benefits:

• Leak prevention keeps your product safe.

• Cleanliness lowers the risk of germs.

• Less maintenance means fewer stops.

• Good performance works in tough places.

• Safety keeps your process protected.

You should choose the best capping and sealing for your line. Maya’s machines help you get high quality and safety. You can trust Maya for strong and fast capping and sealing in your cartridge filling line.

Inspection & Quality Control

You have to check every cartridge to keep people safe. Checking helps you find problems before they get worse. Maya’s validation services help you at every step. This keeps your production line steady and your products safe.

Inspection Steps

First, you look at each cartridge to find cracks or leaks. You also check for dirt. You use cameras or magnifiers to see small problems. You look at the shape and color of each cartridge. You make sure every cartridge is good quality. You test for leaks by pressing or shaking the cartridge. You check the oil level to make sure it is right. You write down every result so you can track them.

Tip: Check cartridges more than once during the process. Early checks help you find problems before packaging.

Quality Equipment

You need good machines to check and control quality. Maya has advanced tools to help you keep your process strong and your products high quality.

Leak Testing

You test for leaks to keep your product safe. Machines pressurize cartridges and look for drops. You can use water baths or air pressure tools. Leak testing stops oil from leaking out. You must test every batch to keep quality high.

Automated Inspection

Automated systems use cameras and sensors to check cartridges. These machines scan for defects fast. You get the same results every time. Automated tools help you avoid mistakes. Maya’s systems help you keep your process strong.

Defect Solutions

You must fix problems fast to keep quality high. If you find a leak, take the cartridge out of the line. You fix it or throw it away. You use inspection data to make your process better. You teach your team to find problems early. You keep records to track what went wrong and how you fixed it.

Note: Use Maya’s quality control systems for steady production. You get good results and keep your products safe.

You follow these steps to keep safety and quality high. You use strong equipment and good checking routines. You protect your process and give people products they can trust.

Packaging & Labeling

You finish your cartridge filling line with strong packaging and clear labeling. This step keeps your product safe and gives users important information. Maya has packaging and labeling solutions that help you meet high standards in medicine.

Packaging Types

You can pick different packaging types for your cartridges. Each type has special features for safety and easy use.

Bulk Packaging

Bulk packaging groups many cartridges together. You use this method to ship large amounts to hospitals or pharmacies. Glass cartridges are good for bulk packaging because they resist chemicals and keep medicine safe. You can also use break-resistant cartridges if you need extra strength during transport.

Retail Packaging

Retail packaging gets cartridges ready for sale to customers. Each cartridge comes in its own box or blister pack. Polymer cartridges are a good choice for retail packaging. They protect sensitive medicines and are ready to use. Double chamber cartridges can go in retail packs. These keep two drug parts separate until use. Core cartridges are common for diabetes and hormone treatments because they stay stable and safe.

Labeling Techniques

You must label every cartridge clearly. Labels show what is inside and how to use it. Maya’s labeling solutions help you work fast and follow the rules.

Automated Labelers

Automated labelers put labels on cartridges quickly. You use these machines for big batches. They print and stick labels in the right place every time. Automated labelers help you avoid mistakes and save time.

Manual Tools

Manual tools let you label small batches or special orders. You use hand tools or simple machines. Manual labeling gives you control and lets you check each label for quality.

Compliance & Traceability

You must follow strict rules for packaging and labeling. Each cartridge needs a unique code. This code helps you track the cartridge from the factory to the user. You need to keep records for every step. Health authorities want high traceability. You must follow rules from groups like the USFDA and EU GMP. You also need to use electronic data controls to meet 21 CFR Part 11. Good traceability helps you find problems fast and keeps your products safe.

Tip: Use Maya’s turnkey packaging and labeling solutions to meet all compliance needs and make your process smooth.

Pharmaceutical Industry Standards

You have to follow strict rules in the pharmaceutical industry. These rules keep your cartridge filling line safe and working well. They help protect patients and make sure your process is steady. You need to know about regulatory compliance and cleanroom needs. Maya gives you advanced help for clean production and cleanroom projects.

Regulatory Compliance

You must follow rules at every step of making medicine. These rules come from many countries and groups. They help keep your products safe and high quality. You need to follow rules for machines, workers, and records. Here is a table that shows the main rules for cartridge filling lines:

You need to check your process often. You must keep records and show you follow the rules. You have to train your team to follow every rule. Maya helps with checking, paperwork, and process control. You can trust Maya to help you follow the rules.

Tip: Always check for new rules. This helps you avoid problems and keeps your line running well.

Cleanroom Requirements

Cleanrooms are very important in making medicine. Cleanrooms keep your products safe from germs and dust. Each cleanroom grade has its own air and particle rules. You must pick the right cleanroom for each step. Here is a table that explains cleanroom grades for cartridge filling:

You must keep your cleanroom working well. You need to check air and look for dust. You must use HEPA filters and keep the right air pressure. You have to train your team to follow cleanroom rules. Maya gives you full cleanroom help for making medicine. You get help with design, setup, and checking. Maya’s experience helps you meet every standard.

Note: Cleanrooms keep your medicine safe. You must follow all the rules to keep your line safe and legal.

Ampoule Filling Lines & Related Solutions

Comparison With Cartridge Lines

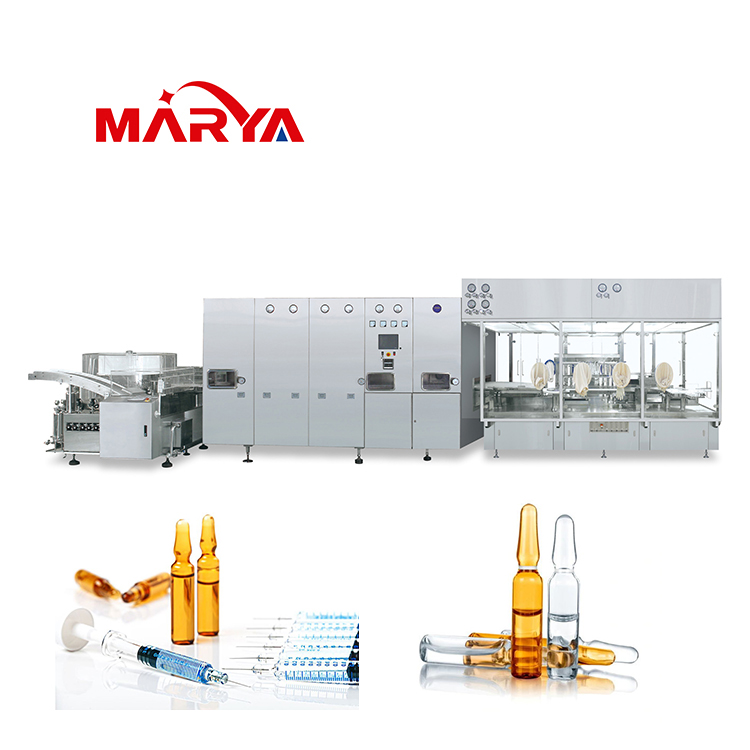

Ampoule filling lines and cartridge filling lines are both used to fill medicine safely. They have different designs and uses. Ampoule filling lines fill and seal small glass ampoules. These ampoules protect liquid medicine from air and germs. Cartridge filling lines use cartridges made of glass or plastic. Cartridges are often put into pens or other devices.

Ampoule filling lines use machines to fill each ampoule with the right amount of liquid. The machines seal the ampoule by melting the glass at the top. This keeps the medicine inside clean and fresh. Cartridge filling lines use capping and sealing instead of melting glass. Both lines can be used in a pharmaceutical factory. Ampoule filling lines are chosen when you need the highest sterility.

Ampoule filling lines use aseptic technology. This stops air and germs from getting inside during filling. You get airtight seals that protect the medicine. Borosilicate glass makes ampoules strong and safe. Ampoule filling lines often use preservative-free packaging. Other systems may not always do this.

Here is a table that shows how Maya's ampoule filling lines compare to industry standards:

Maya's Ampoule Filling Lines

Maya makes advanced ampoule filling lines. These lines follow strict pharmaceutical rules. The machines fill, seal, and inspect every ampoule. Maya's ampoule filling lines use aseptic technology. This keeps germs and air out. Airtight seals keep medicine safe and fresh.

Maya uses high-quality materials for every ampoule. Borosilicate glass gives ampoules strength and stability. Maya's ampoule filling lines support preservative-free packaging. This helps you deliver pure medicine to your customers.

Maya offers many products for ampoule filling lines. You can get washing machines, sterilizers, and inspection systems. Maya also provides solution preparation systems and water treatment equipment. These tools help your ampoule filling lines run smoothly.

When you use Maya's ampoule filling lines, you get:

• Aseptic technology for safe filling

• Airtight seals for product integrity

• High-quality glass ampoules

• Preservative-free packaging options

You can count on Maya for complete ampoule filling lines and all the equipment you need for your pharmaceutical production.

Optimizing Filling Line Efficiency

Workflow Tips

You can make your cartridge filling line better by using smart tips. First, make sure every step is the same each time. This helps you avoid mistakes and keeps things steady. Try to use less material and time by cutting out waste. Add machines to help with jobs when you can. Machines can fill cartridges faster and need fewer workers. Teach your team new skills often. Workers who know what to do can fix problems quickly.

Set up your work area so people can move easily. Put machines and tools close to where they are needed. Use tools that show you what is happening right now. These tools help you find problems before they get big. Give your team clear goals to reach. Count how many cartridges you fill every hour. Look at your results and change things if needed. Always try to get better. Ask your team for ways to improve the line. Use a pull system to only make what you need. This saves money and stops waste. Check your process often to make sure you are doing well.

Tip: Smart control systems can stop filling if there is no cartridge. This saves oil and makes your line work better.

Quality Improvement

You can make your products better by using good methods. Machines help you fill more cartridges and keep things steady. Filling the right amount each time stops mistakes and keeps customers happy. Simple steps mean less hand work and faster production.

Volumetric filling machines help you fill the right amount every time. These machines can be very accurate, with small mistakes. You waste less and each cartridge gets the right amount. This also helps the environment, which many people like.

Note: Maya’s support and clear instructions help you keep your filling line working well.

Maintenance Strategies

You need to take care of your filling line to keep it running. Check chains and motors for damage or wear. Make sure your software is up to date. Look at the whole system to see how it is working. Change filters often to keep things clean. Check the frame for rust or loose parts. Always follow the maker’s rules for taking care of your machines.

Tip: Maya’s support gives you expert help and clear instructions. This keeps your filling line working well and steady.

You are important in every part of the cartridge filling line. Every step helps keep products safe and good. Here are the main things to remember:

You can count on Maya for strong and steady solutions. Always work to make your process better and check quality often for the best results.

FAQ

What is a cartridge filling line?

A cartridge filling line is a group of machines that clean, fill, seal, and pack cartridges. You use it to make sure each cartridge is safe and ready for use.

Why is cleanroom technology important?

Cleanroom technology keeps dust and germs away from your medicine. You need it to protect your products and follow health rules.

How do you choose the right filling machine?

You look at your product type, batch size, and speed needs. Maya’s team can help you pick the best machine for your process.

What is the difference between ampoule and cartridge filling lines?

Ampoule lines fill and seal glass ampoules by melting the top. Cartridge lines fill and cap cartridges, often for pens or injectors.

How do you prevent leaks in cartridges?

You use tight seals, check for cracks, and test each cartridge. Maya’s machines help you spot leaks early and keep your products safe.

Can you switch between different cartridge sizes?

Yes! Maya’s modular machines let you change parts quickly. You can fill many cartridge sizes with one line.

What records do you need for compliance?

You need to keep records of cleaning, filling, inspection, and packaging. These records show that you follow all rules and keep products safe.

Who can help if you have a problem with your filling line?

You can contact Maya’s support team. They offer expert help, training, and fast solutions for your filling line.
