Key Components of a Cartridge Filling Line and Their Functions Explained

You use a cartridge filling line to make filling easier. It helps fill cartridges with liquids or powders. Knowing each part helps you work better and safer. The main parts are filling systems, automation and handling units, capping and sealing units, control systems, and extra systems. The market for cartridge filling lines is growing quickly. Maya is the top company with smart and trusted technology.

Key Takeaways

• Cartridge filling lines use machines to fill cartridges with liquids or powders. This makes the process faster and more accurate.

• Knowing about the main parts, like filling systems and automation units, helps keep workers safe and makes production better.

• Maya uses new technology that follows industry rules. This helps cut down on waste and keeps products good.

• Every step, from cleaning to labeling, is important for making sure products are safe and high-quality.

• Automation means people do less work by hand. It also makes things go faster and helps stop mistakes, so results stay the same.

• Control systems with PLCs and sensors watch the filling process. They help keep things safe and find problems quickly.

• Data logging and batch tracking are needed to keep quality high and follow rules.

• Maya’s turnkey solutions give custom systems for different production needs. This makes setting up and running the machines easier.

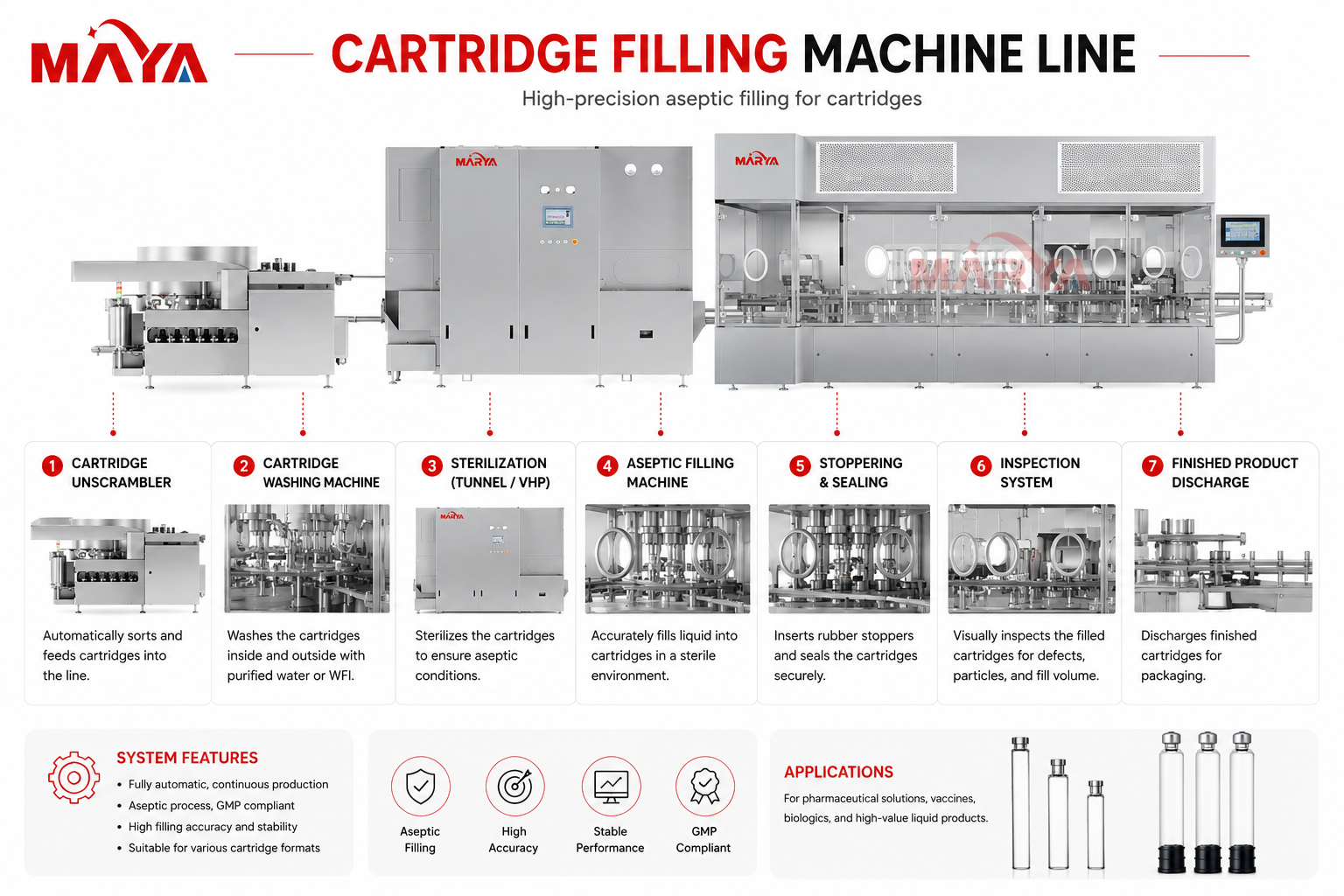

Cartridge Filling Line Overview

Purpose and Applications

A cartridge filling line makes filling cartridges easier. It uses machines to fill cartridges with liquids or powders. This system helps you work faster. It keeps your products the same every time. Cartridge filling lines are important in medicine and vape factories. You find these machines where accuracy and safety are needed.

Cartridge filling lines help you follow strict rules. They stop mistakes and cut down on waste. They keep your products the same, which is good for quality and following laws.

Main uses of cartridge filling lines include:

• Filling cannabis or nicotine oils into cartridges automatically.

• Making filling more accurate and consistent than doing it by hand.

• Cutting waste and keeping products uniform, which matters in regulated industries.

• Doing capping and sealing to make production faster.

You use these systems for sensitive materials. In medicine, you fill cartridges with medicines or vaccines. In vape factories, you fill cartridges with oils or e-liquids. You need a system that keeps things clean and exact.

Workflow Steps

You follow steps when using a cartridge filling line. Each step helps keep products safe and high-quality.

1. You get containers ready for filling.

2. You clean containers to kill germs.

3. You prepare stoppers and closure parts.

4. You filter and clean the product.

5. You fill cartridges using clean methods.

6. You put stoppers in and seal cartridges.

7. You do extra steps if needed for your product.

8. You pack cartridges for shipping.

9. You label and check the final product for quality.

Each step builds on the one before. You keep your work neat and fast. You make sure every cartridge is up to your standards.

maya’s Role in Cartridge Filling Lines

You want a partner you can trust for your cartridge filling line. Shanghai Maya gives you smart solutions for medicine and vape production. Maya makes filling lines that help you work better and safer. Their machines do everything from filling to sealing and packing.

Maya’s technology helps you follow strict rules. You get stable, legal, and efficient production lines. You also get help with cleanroom projects and full solutions.

You trust Maya because they have over 12 years of experience. You get help from their knowledge in clean production and medicine engineering. You can visit their website for more details: Shanghai Maya Pharmaceutical Solutions.

Key Components of Cartridge Filling Lines

Filling System Components

The filling system is where you begin. This group makes sure cartridges get the right amount of product. Reservoirs and feed units hold liquids or powders. Pumps move the product to dosing and dispensing units. These units measure how much goes in each cartridge. Nozzles and filling heads put the product into cartridges. They stop spills and keep air bubbles out.

Here is a table that shows the main filling system components and their jobs:

Maya’s technology gives you high filling accuracy. Their filling heads and pumps can be very precise. You can fill many cartridges fast, up to 8,400 bottles each hour.

Reservoirs and Feed

Reservoirs store your product before filling. Feed systems move the product to the filling area. You keep the product clean and ready to use. Maya uses stainless steel or silicone for parts that touch the product. This makes cleaning easy and keeps your product safe.

Dosing and Dispensing

Dosing and dispensing units measure the right amount for each cartridge. Pumps, like peristaltic or rotary piston types, help control the flow. You avoid waste and make sure every cartridge gets the same amount. Maya’s servo motor system lets you change speed and volume for different products.

Nozzles and Filling Heads

Nozzles and filling heads put the product into the cartridge. These parts stop spills and air bubbles. You fill from the bottom up to keep air out. Maya’s filling heads work with many cartridge types and sizes. You can change them for thick or thin products.

Automation and Handling

Automation and handling parts move cartridges through the line. You load and place cartridges so filling heads can work fast. Conveyors and alignment systems keep everything in order. You do less manual work and production speeds up.

Here is a list of automation and handling parts you might use:

• Loading and Positioning: You put cartridges in the right spot for filling.

• Conveyors and Alignment: You move cartridges along the line and keep them straight.

• Indexing Turntable: You turn cartridges for easy access.

• Cartridge Nest: You hold cartridges steady while filling.

• Servo Motors: You control movement and speed for smooth operation.

Maya’s automation lets you work fast. Their systems handle up to 1,600 packages each hour. You spend less time doing things by hand and get more consistent results.

Loading and Positioning

You start by loading cartridges onto the line. Positioning systems make sure each cartridge is ready for filling. Sensors and motors keep everything in place. Maya’s automation helps you handle many cartridge types without mistakes.

Conveyors and Alignment

Conveyors move cartridges from one station to another. Alignment systems keep cartridges straight so filling and capping work well. You avoid jams and keep production fast. Maya’s conveyors use advanced controls for steady movement.

Capping and Sealing Units

Capping and sealing units finish the process. You put caps on filled cartridges and seal them tight. These parts protect your product and keep it fresh. You use settings to handle different cartridge sizes and styles.

Here is a table showing capping and sealing features:

Maya’s capping units give you reliable sealing. Their systems use advanced controls to apply even pressure. You can handle many cartridge styles and sizes with easy adjustments.

Cap Placement

Cap placement units put caps on cartridges. These units line up the cap and get it ready for sealing. You avoid mistakes and keep the process fast. Maya’s machines use sensors and servo motors for accurate placement.

Sealing Methods

You seal cartridges using pressure or heat. Sealing methods keep your product safe and fresh. You change settings for different cartridge types. Maya’s sealing units apply even pressure and reach high qualification rates.

You depend on these parts to keep your cartridge filling line safe and efficient. Maya’s technology gives you high accuracy, fast production, and reliable sealing. You can change the line for your product needs.

Control Systems

Control systems help you watch and manage each step. These parts make sure your work is safe and correct. You use control systems to keep things steady and spot problems early.

PLCs and Sensors

PLCs are like the brains of the filling line. They control machines and check sensors. Sensors look for changes in pressure, temperature, and position. They send signals to the PLC. The PLC makes quick choices to keep things working.

You get many good things from using PLCs and sensors:

• PLCs and sensors use the same language to talk. This helps all parts work together.

• Everything moves at the right speed. Conveyors, filling, and capping match up.

• Smart weighing modules check how much is in each cartridge. This keeps filling right and cuts down on waste.

• Sensors find problems fast. You can fix things before they slow you down.

You can look at your workflow to find slow spots. Using the right communication helps PLCs, sensors, and flow meters work together. You also make sure conveyors do not go faster than capping or labeling.

Maya uses smart PLCs and sensors in their control systems. You get results you can trust. Your line runs with fewer mistakes and more control.

Data Logging

Data logging keeps a record of every step. You use it to track batches, check quality, and follow rules. The system saves info from sensors and PLCs. You can look back to see what happened during work.

You get these benefits from data logging:

• You can track every batch for records.

• You see patterns and fix problems quickly.

• You follow rules and pass checks.

• You make your process better over time.

Maya’s control systems have strong data logging tools. You can save, check, and share data easily. This helps you keep your work safe and running well.

Auxiliary Systems

Auxiliary systems help your main filling line parts. You use them to keep things clean, safe, and working right. They help you meet tough industry rules.

Cleaning and Sterilization

Cleaning and sterilization systems get rid of germs and dirt. You use them to keep cartridges and machines safe for medicine or vape. Automatic cleaning saves time and lowers mistakes.

You can use:

• CIP systems to wash inside tanks and pipes.

• SIP systems to kill germs with steam or heat.

• Special tools to clean nozzles and filling heads.

Maya makes cleaning and sterilization parts that fit your needs. You get easy systems that help you follow safety rules.

Environmental Controls

Environmental controls keep your work area clean and steady. You use them to control air, temperature, and humidity. This keeps your product safe from dust and germs.

Key features include:

Maya gives you advanced environmental control parts for your line. You keep your workspace safe and your products high-quality.

You need all these parts to build a strong cartridge filling line. Maya’s technology helps you manage, clean, and control your work easily.

Filling System Technologies in Pharmaceutical Cartridge Filling Machines

Time-Pressure Filling (TPF)

Time-pressure filling helps control how much goes into each cartridge. This method uses both time and pressure to move liquid. You set how long and how hard the pressure pushes. You can change these settings for each product. This makes the results steady and helps stop waste. Time-pressure filling works best with thin liquids. Many pharmaceutical cartridge filling machines use this method. You can adjust the process for every batch. Sensors watch the filling to make sure each cartridge gets enough. This method is trusted for being accurate.

Peristaltic and Rotary Piston Pumps

You can pick peristaltic pumps or rotary piston pumps for filling. Peristaltic pumps use soft tubes that get squeezed to move liquid. These pumps are easy to clean and set up fast. They work well with thin liquids. The filling is very close to perfect, with less than 1% error. You change the tube when it wears out. This keeps things safe and clean.

Rotary piston pumps are used for thick liquids. These pumps are very exact and strong. They work in cleanrooms and can handle very thick products. The filling is even more accurate, with less than 1% error. You check the process for each product to make sure it works right.

Here is a table that compares the two pump types:

You choose the pump that fits your product and process. This helps keep the filling fast and dependable.

Heater Kits for Consistency

Heater kits help keep the filling process the same every time. They warm up the product before filling starts. This stops clogs and keeps things moving smoothly. Heater kits are good for thick or sticky products. You set the right temperature for each job. This stops the product from changing thickness while filling. The process stays steady from start to finish. Heater kits help with oils and gels. They make sure the filling is always even. You use heater kits to follow GMP rules. This gives you better results every time.

Picking the right technology makes the filling process better. You keep it safe, accurate, and fast. You can trust these advanced solutions for your pharmaceutical cartridge filling machine.

maya’s Filling System Innovations

You want a cartridge filling machine that is special. Maya gives you new filling system ideas for medicine production. These ideas help you be accurate, safe, and follow rules.

Maya makes filling systems with aseptic technology. This keeps your product clean from start to finish. The machines use isolators and barriers to block germs and dust. You can trust these systems to meet GMP rules. Maya’s filling lines use stainless steel and medical-grade silicone for all parts that touch your product. You can clean these parts easily and keep your workspace safe.

You control each step with smart automation. Maya’s servo motors and PLCs let you change filling speed and volume for every batch. You set up recipes for different products. The machine remembers your settings and uses them again. You get the same results every time and waste less.

Here is a table that shows maya’s key innovations:

You can count on maya’s modular filling heads. These heads fit many cartridge sizes and types. You can switch them fast when you change products. This saves you time and keeps your line flexible.

You use real-time data logging to watch every batch. The system records filling amounts, temperatures, and times. You check this data to find problems early. You make your process better and keep your products safe.

Maya’s heater kits help you fill thick or sticky products. You set the right temperature for each job. The heater keeps the product smooth and stops clogs. You get steady filling and high-quality cartridges.

You also get easy cleaning and sterilization. Maya’s CIP and SIP systems wash and sterilize tanks, pipes, and filling heads. You press a button and the system cleans itself. This saves you time and helps you follow safety rules.

You pick maya for reliable and advanced filling solutions. You get machines that help you work faster, safer, and smarter. You meet industry standards and deliver quality products every time.

Automation in Automatic Cart Filling Machines

Automated Loading and Unloading

You can make your work faster with automated loading and unloading. These systems use robotic arms and sensors to move cartridges. Robots put cartridges on the line and take them off. You do not need to unload by hand for hours. Robotic loading finishes the job in 10 to 15 minutes. This saves time and keeps your team safe from injuries.

Here is a table that shows how much time each process takes:

Automatic loading and unloading lowers the need for workers. It stops jams and keeps things moving. Sensors handle cartridges gently so they do not break. This makes your workplace safer and cuts costs. You can fill urgent orders fast and keep production high.

• Cuts down on manual work and injuries

• Makes processing faster and easier

• Stops product damage with careful handling

Synchronization and Workflow

You need all parts of the machine to work together. Synchronization means everything moves at the same speed. Upstream and downstream systems talk to each other to stop jams. Buffer management uses conveyors to handle speed changes. Filling, capping, and packaging match up so nothing slows down.

You can use these ways to make workflow better:

• Upstream/Downstream Synchronization: Keeps the line moving together.

• Buffer Management: Uses conveyors to handle speed changes.

• Speed Matching: Makes filling match cartoner speed.

• Quality Gates: Checks products before they go forward.

• Robotic Systems: Help with different products.

• Collaborative Robots: Work with people for repeat jobs.

These methods help you avoid stopping the line. You keep production steady and handle big batches or mixed products. Automatic systems let you change products or packaging quickly.

Quality Control Integration

You want every cartridge to be good. Automatic cart filling machines check each unit with built-in quality control. Leak control checks the center post after filling. Oxidation control uses cold and gas to keep products fresh. The whole process is automatic so you do not miss steps.

Here is a table of main quality control features:

Automatic quality control systems weigh each cartridge. They remove any that do not meet standards. You get steady results and high quality. These systems help you follow strict rules and keep customers happy.

Automatic cart filling machines give you high output and good quality. With automation, you work faster and make fewer mistakes. You spend less time checking by hand and more time growing your business.

maya’s Automation Solutions

You want your production line to work well and fast. Maya gives you automation solutions to help you reach these goals. Their machines load, fill, cap, and unload cartridges with little manual work. Maya designs automatic cart filling machines with smart technology to make your job easier.

Maya’s automation systems help you save time and cut mistakes. You can trust their machines to handle big batches and keep your products safe.

You find many features in Maya’s automation solutions:

• Robotic Loading and Unloading: Robots put cartridges on the line and take them off after filling. You do not need to move cartridges by hand for hours.

• Servo Motor Control: Servo motors move parts very accurately. You get smooth and steady operation every time.

• Sensor-Based Positioning: Sensors check where cartridges are placed. You avoid jams and keep the line running fast.

• Automated Quality Checks: Machines check each cartridge for leaks or defects. You get high-quality products without checking by hand.

• Recipe Memory: You save settings for each product. The machine remembers your recipes and uses them again for new batches.

• Modular Design: You change parts easily for different cartridge sizes or products. This makes your line flexible.

Here is a table that shows how Maya’s automation solutions help you:

You use Maya’s automatic cart filling machines to fill cartridges for medicine, vape, or other products. You set up the machine for your needs. You can fill thick or thin liquids, change cartridge sizes, and adjust speed. Maya’s machines handle these changes without slowing down.

Maya’s team helps you set up, train your staff, and fix problems. You can contact them for advice or service.

You see real-time data on the machine’s screen. You track filling amounts, speed, and quality checks. You use this data to make your process better and follow industry rules. Maya’s automation solutions help you meet GMP standards and keep your products safe.

You pick Maya for reliable automation. You get machines that work fast, stay accurate, and make your job easier. You grow your business with less effort and more confidence.

Control and Data Systems for Cartridge Filling

PLCs and User Interfaces

PLCs are like the brains of your filling line. They help control each step, like filling and capping. You use a user interface to set up the machine. The interface shows you important things, like speed and errors. Touchscreens make it simple to change settings. You do not need special skills to use them. You can tap to change speed or how much you fill. PLCs help keep your work steady and safe.

User interfaces show you alarms and real-time data. You see warnings fast and can fix problems quickly.

Data Logging and Batch Tracking

You must track every batch for quality and rules. Data logging saves each step in your filling line. You can check these records later if needed. Batch tracking tells you which products go with each batch. This is helpful for audits or recalls. You keep your records neat and easy to find.

Here is a table with best ways to log data and track batches:

Operators write daily logs about shifts and downtime. Team leaders check weekly reports to find problems and give ideas. Supervisors look at monthly trends to plan fixes and future needs. This routine keeps your filling line safe and working well.

Error Detection and Safety

You want your filling line to work without trouble. Error detection helps you find problems early. Sensors look for leaks, jams, or missing caps. If something is wrong, the system warns you right away. You can fix it before it gets worse. PLCs and sensors work together to keep things safe.

Safety is important at every step. Alarms warn you about dangers. Emergency stop buttons let you stop the line fast. You teach your team to follow safety rules. You check machines often to stop accidents. You keep your area clean and tidy. These habits keep your team and products safe.

Safety is something you do every day. Smart controls, regular checks, and good records make your filling line safer.

You trust control and data systems to help you work better. PLCs, user interfaces, and data logs keep your process steady. Error detection and safety features protect your team and products. You build a strong and safe cartridge filling line.

maya’s Control System Advantages

You want your cartridge filling line to follow strict rules. You also want every batch to be safe. Maya’s control systems have many features to help you do this. These features make your job easier and help you follow the law.

One important feature is how maya’s control systems help you meet rules. You must follow GMP and FDA 21CFR part 11. Maya’s systems make this easy for you. You can set who uses the system. You can use electronic signatures and audit trails. These things help you show your process is safe and legal.

Another important feature is traceability. You need to know what happens to each cartridge. Maya’s control systems save important data at every step. You can track each batch from start to finish. This helps you find problems quickly and fix them. You can also show inspectors that you are in control.

Here is a table that shows how maya’s control systems help you:

You get even more features with maya’s control systems. You can watch your line in real time as it works. You see alarms and warnings right away. You can stop problems before they cause waste. You can also check batch reports later to see your work.

Maya’s systems let you save recipes for different products. You can switch jobs with just a few taps. These features help you work faster and make fewer mistakes. You can also check your line from anywhere using remote access. This gives you more control and peace of mind.

Here are some main features you get with maya’s control systems:

• User-friendly touchscreens for easy setup

• Secure logins and electronic signatures

• Automatic data logging for every batch

• Real-time alarms and error messages

• Recipe storage for quick product changeover

• Remote monitoring and support

• Full audit trails for inspections

• Batch tracking for every cartridge

• Customizable reports for quality checks

• Integration with other factory systems

These features work together to keep your cartridge filling line safe, legal, and efficient. You can trust maya’s control systems to help you with every challenge in your work.

Tip: Use the reporting features to get ready for audits. You can show inspectors clear records for every batch.

With maya’s control systems, you get all the features you need for rules and traceability. You can focus on making good products while the system handles the details.

Integration and Optimization of Pharmaceutical Cartridge Filling Machines

Component Interaction

Inside a pharmaceutical cartridge filling machine, many parts work together. Each part has its own job. When you put them together, the process runs smoothly. The cartridge container holds the medicine. The plunger moves the medicine and seals the cartridge. The lined seal stops leaks and keeps the medicine safe. Look at the table below to see how these parts work together:

You need these parts to keep your medicine safe and correct. When you use the machine, you see how each part helps the others. The machine fills, seals, and checks every cartridge. You get the same results every time because the parts work together.

Workflow Optimization

You want your filling line to be fast and steady. Workflow optimization helps you do this. Precision filling makes sure each cartridge gets the right amount. High-speed filling lets you make more cartridges quickly. Automated operation cuts down on manual work and keeps things efficient. Here are some ways to make your workflow better:

• Precision filling keeps cartridges the same.

• High-speed filling makes more cartridges in less time.

• Automated operation lowers mistakes and saves time.

You set up your machine to fit your needs. You change speed and volume for each batch. Automation handles filling, capping, and sealing. This keeps your workflow smooth and helps you follow strict rules.

Tip: Use automated systems to cut errors and work faster. You can focus on quality while the machine does the routine jobs.

Customization for Different Cartridges

You often need to fill different cartridge types. Customization makes this easy for you. Modular parts let you change the machine for new cartridges. Adjustable settings help you switch sizes and materials fast. You can finish changeovers in 15 to 30 minutes. Most modern machines have modular parts and adjustable settings. You can handle cartridges with different diameters and lengths.

Here is a table showing key features for customization:

You use these features to make your machine flexible. You can fill glass or plastic cartridges. You change the settings for each product. Maya offers turnkey solutions to help you customize your line. You get machines that fit your needs and help you work faster.

Note: Quick changeovers and modular designs help you stay ahead. You can fill many cartridge types without slowing down.

maya’s Turnkey Solutions

You want your machine to work well right away. Maya gives you a full solution for every step. You do not need to talk to many suppliers. You get a system that is ready to use and fits your needs.

Maya learns about your project first. You get help from start to finish. Their experts listen to what you want and need. They help you plan the best way to set up your line. You see your ideas with 2D and 3D models. These models show how each part fits and works.

You might need special features or different cartridge sizes. Maya can customize machines for you. Their engineers design equipment for your product and process. You do not have to use a basic machine. You get a system made just for you.

Before you start making products, you want to check everything. Maya does tests like Factory Acceptance Testing and Site Acceptance Testing. These tests make sure your machine meets all rules and works well. You see proof your line is ready to use.

When your equipment comes, Maya’s team sets it up. They install each part and check everything. You do not need to worry about mistakes. Their experts teach your staff how to use the system.

After you start using the machine, you still get help. Maya gives after-sales support to fix problems fast. You get documents with clear instructions and records. Certification services help you follow GMP and other rules.

Here is a summary of maya’s turnkey services:

• Full-process consulting

• 2D/3D design modeling

• Machine customization

• Validation (FAT/SAT)

• Installation and commissioning

• After-sales support

• Process documentation

• Certification services

With maya’s turnkey solutions, you save time and avoid stress. You get a machine that meets strict rules for aseptic integration, GMP compliance, and batch traceability. Maya’s smart automation and expert help let you reach your production goals with confidence.

When you know about each part of a cartridge filling line, you get many benefits. You see how being exact and careful makes your work better. Using a vape cart filling machine helps you work safely and quickly. You follow good steps to fill each batch the same way. You look at different filling machines to pick the best one for you. You also think about safety when using a cart machine. Maya gives you smart tools to help you do a great job. You can trust their machines to work well and fill each cartridge the right way.

Pick Maya for expert help and cleanroom solutions. You make your production line safer and more efficient.

FAQ

What is a cartridge filling line?

You use a cartridge filling line to fill many cartridges quickly. This line helps you keep each cartridge clean and safe. You can use it for vape products or medicine. The line makes your work faster and more accurate.

How does a vape cartridge filling machine work?

A vape cartridge filling machine moves liquid into each cartridge. You place empty cartridges on the machine. The machine fills them with vape oil. You get the same amount in every cartridge. This keeps your products even and high quality.

Why should you use a vape cart filling machine for vape products?

You use a vape cart filling machine to fill cartridges with vape oil. This machine helps you avoid spills. You get fast filling and less waste. You can fill many cartridges in a short time. This helps you grow your vape business.

Can you use a vape cart filling machine for filling cannabis or nicotine oils?

Yes, you can use a vape cart filling machine for filling cannabis or nicotine oils. The machine keeps the process clean. You get the right amount in each cartridge. This helps you follow safety rules and make good vape products.

What is the overview of vape cart filling machines?

You use a vape cart filling machine to fill vape cartridges. The machine has a reservoir, pump, and filling head. You place cartridges on the line. The machine fills each one. You get steady results and save time.

How do fully automatic machines help with cartridge filling?

Fully automatic machines fill cartridges without much help from you. You load empty cartridges. The machine fills, caps, and seals them. You save time and reduce mistakes. This helps you make more vape cartridges every day.

How do you clean a vape cart filling machine?

You clean a vape cart filling machine by running cleaning fluid through the system. You take out the filling head and wash it. You check for leftover oil. Clean machines help you make safe vape cartridges.

How do you choose the right vape cart filling machine?

You look at how many cartridges you need to fill. You check if the machine works with your vape oil. You see if it fits your cartridge size. You pick a machine that fills fast and keeps your vape products safe.
