Tray cavities are designed according to the ampoule diameter, height and required pack layout.
The cavity structure can support the ampoule body and neck to reduce movement inside the finished pack.

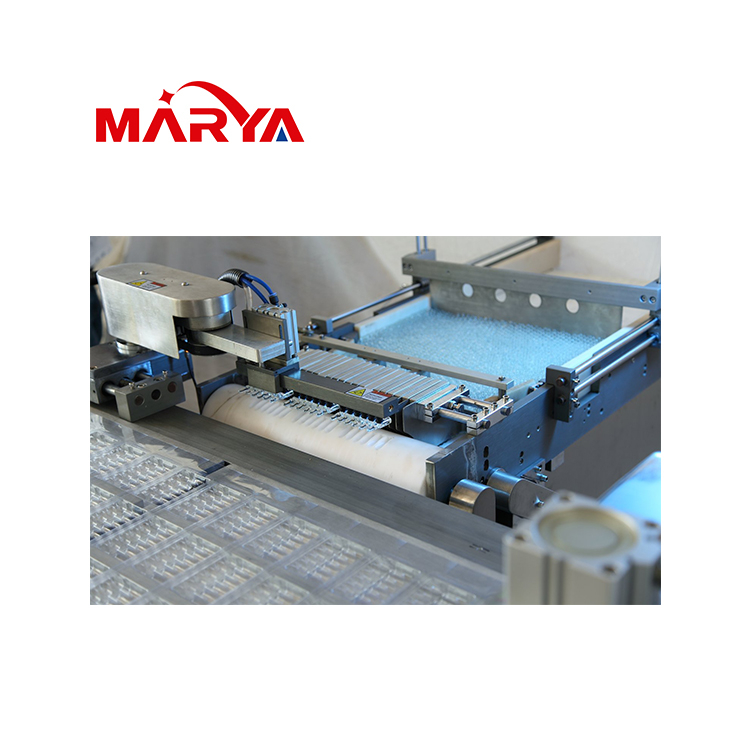

The servo-controlled feeding system transfers ampoules into the trays at a controlled speed.
This helps reduce:
Glass collision
Surface scratching
Ampoule breakage
Incorrect positioning
A customized orienting device can arrange ampoules in the required direction before loading.
This is especially useful when the printing, color ring or break point must face a specified direction.
The machine uses heated rigid film and positive-pressure forming to create stable cavities for ampoules.
The forming depth, cavity shape and material type are selected according to the product.
Optional sensors or vision systems can inspect:
Missing ampoules
Incorrect ampoule position
Broken ampoules
Incomplete tray formation
Sealing defects
A covering film, paper or composite material can be sealed over the loaded tray.
Sealing temperature, pressure and time can be adjusted according to the material combination.
Optional coding systems can print:
Batch number
Production date
Expiration date
Product traceability information
After sealing and coding, the blister tray is punched into the required shape and discharged automatically.
Edge waste can be collected by an automatic rewinding system.
The control system can support:
Speed adjustment
Traction-stroke setting
Temperature control
Alarm display
Production counting
Recipe storage
Servo synchronization
The machine can be customized for:
1 mL ampoules
2 mL ampoules
5 mL ampoules
10 mL ampoules
20 mL ampoules
Other customized ampoule formats
Actual suitability depends on the ampoule dimensions, neck shape, break ring and tray arrangement.
