Product Overview:
The Automatic Cartridge Filling Production Line is an integrated aseptic solution for washing, siliconizing, sterilizing, filling, stoppering, and capping pharmaceutical cartridges.
The line combines an ultrasonic cartridge washing machine, an air-drying and silicone-oil spraying unit, a sterilization and depyrogenation tunnel, and an automatic filling, stoppering, and capping machine. Each unit can operate independently or as part of a fully synchronized production line.
Designed for pharmaceutical cartridge products, the system provides accurate two-stage filling, stable container handling, automated process monitoring, and optional aseptic barrier protection.
Key Benefits:
The line is designed for aseptic cartridge injectable production. It automatically completes cartridge feeding, ultrasonic washing, air and water flushing, drying, silicone-oil spraying, preheating, sterilization, depyrogenation, cooling, stoppering, filling, and capping.
A walking-beam conveying system transfers cartridges in groups of ten, providing accurate positioning and reducing collision and breakage risks.
The filling section uses twenty ceramic rotary-valve pumps and completes filling in two stages. The first stage fills approximately 50–70% of the target volume, while the second stage completes the final dosage. A vacuum recovery needle removes excess liquid from the cartridge opening to reduce product loss and improve filling cleanliness.
Automatic water spraying
Ultrasonic cleaning
Internal and external cartridge flushing
Air and water alternating cleaning
Automatic container transfer
Reduced particulate residue
Suitable for linked or independent operation
Internal and external air drying
Controlled silicone-oil spraying
Uniform silicone distribution
Stable connection with the washing machine and tunnel
Reduced stopper friction during later use
Hot-air circulation
Uniform temperature distribution
Preheating, drying, sterilization, depyrogenation, and cooling
Automatic temperature recording
Automatic temperature-curve printing
Optional online sterilization in the cooling section
Suitable for cartridges, ampoules, vials, and other pharmaceutical glass containers

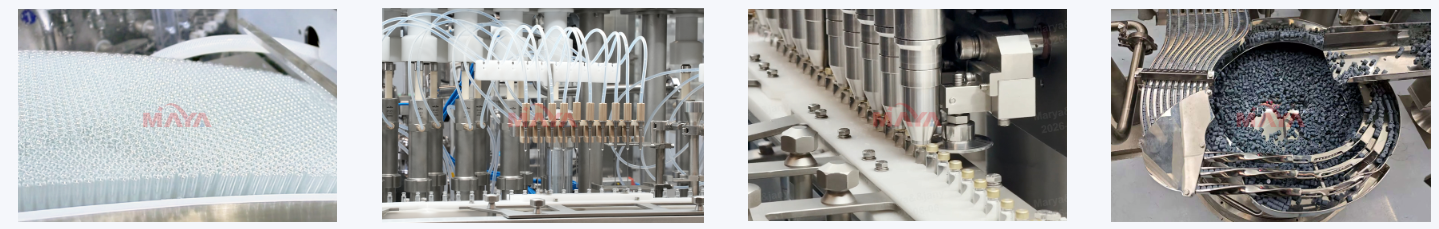

Walking-beam cartridge transfer
Ten cartridges conveyed per group
Twenty ceramic rotary-valve filling pumps
Two-stage filling
Vacuum excess-liquid recovery
Automatic stopper feeding and insertion
Automatic capping
Full-line linkage control
PLC and touchscreen operation

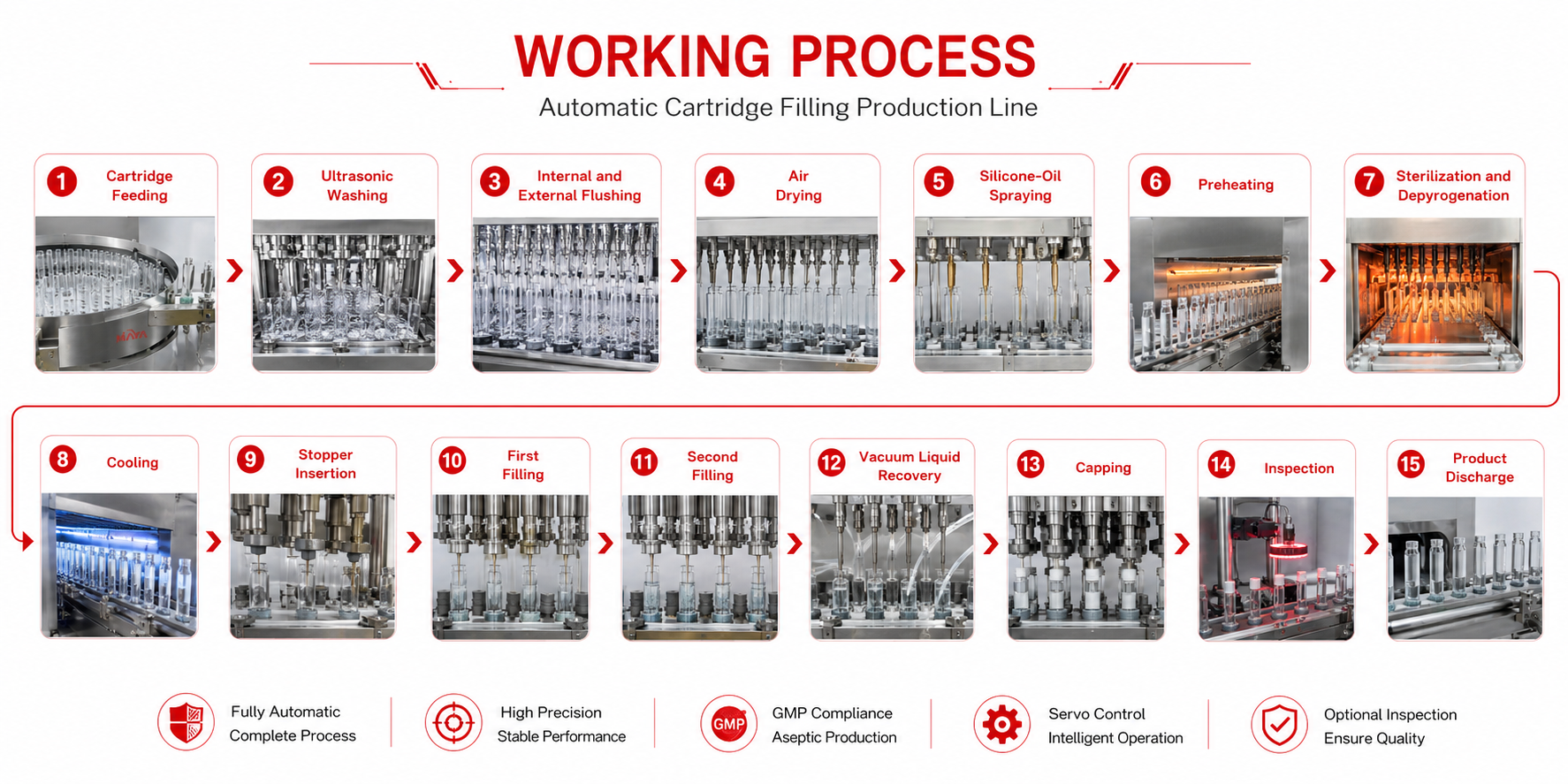

Cartridge Feeding → Ultrasonic Washing → Internal and External Flushing → Air Drying → Silicone-Oil Spraying → Preheating → Sterilization and Depyrogenation → Cooling → Stopper Insertion → First Filling → Second Filling → Vacuum Liquid Recovery → Capping → Inspection → Product Discharge
