A pharmaceutical liquid preparation system is an integrated processing system used to prepare drug solutions and other pharmaceutical liquids under controlled hygienic conditions.
It combines liquid charging, raw material addition, mixing, temperature control, filtration and transfer into a coordinated process before downstream filling or further processing.
PW / WFI Charging
→ API & Excipient Addition
→ Mixing & Dissolving
→ Heating / Cooling
→ Homogenization
→ Filtration
→ Holding / Transfer
→ Filling
The system helps manufacturers maintain more consistent control over critical liquid-preparation parameters while reducing unnecessary manual material handling.

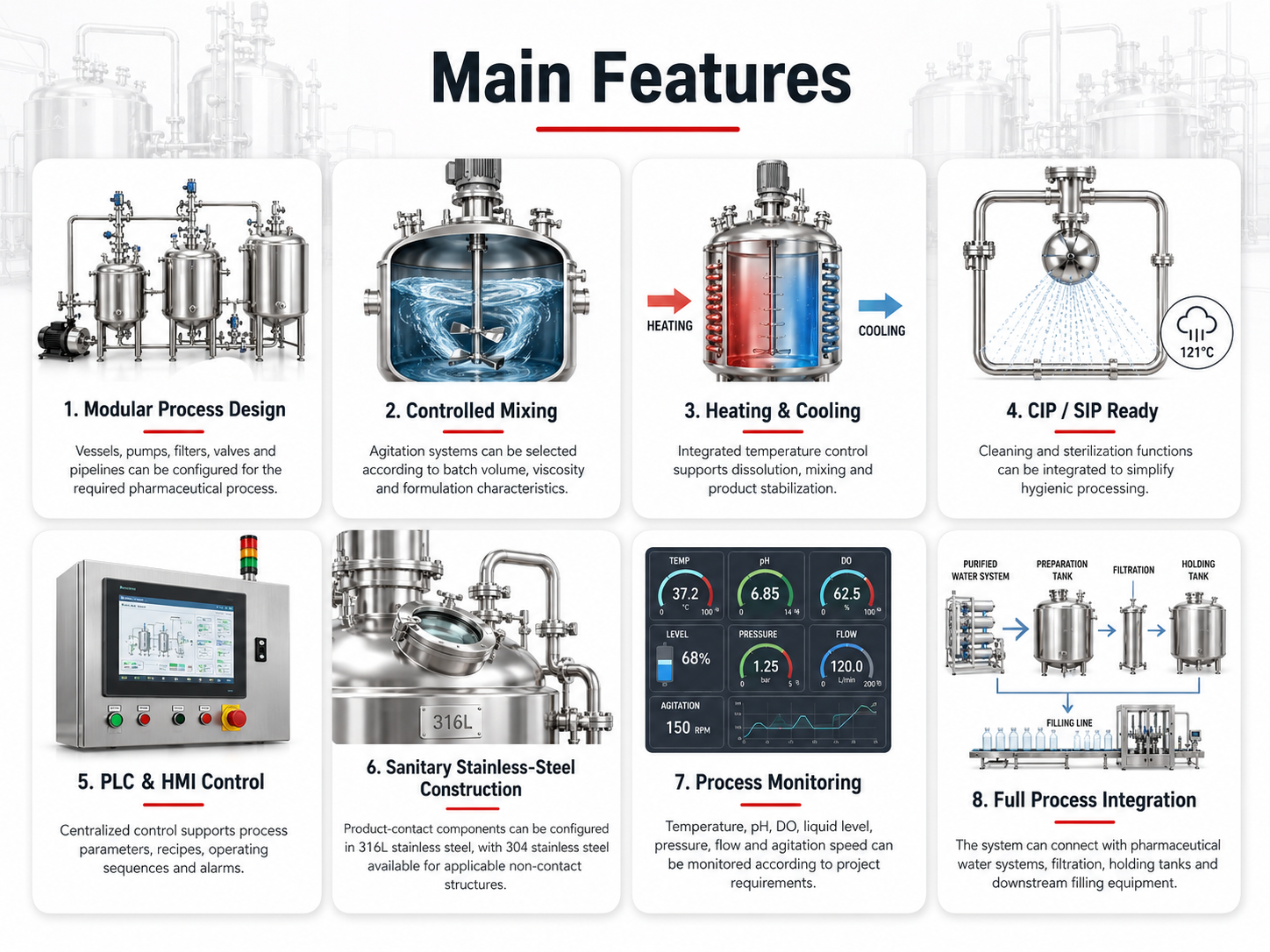

The agitation system supports controlled mixing and dissolution of APIs, excipients and other formulation materials.
Agitator configuration can be selected according to:
Material viscosity
Mixing intensity
Batch volume
Shear requirements
Required mixing time
Jacketed preparation vessels or external heat-exchange systems can be configured to control process temperature during dissolution, mixing or product stabilization.
Temperature control can support:
Heating
Cooling
Temperature holding
Controlled process sequences
High-shear or inline homogenization can be integrated for formulations requiring more intensive particle or droplet dispersion.
Typical applications include:
Suspensions
Emulsions
Selected complex formulations
High-viscosity products
Different filtration stages can be integrated according to formulation and downstream process requirements.
Available configurations can include:
Process filtration
Clarification
Final filtration
Sterile filtration
Sanitary pumps, valves and piping can transfer the prepared liquid to holding tanks, filtration equipment or downstream filling lines.
Closed product transfer helps reduce unnecessary exposure of the formulation to the surrounding production environment.
Automated or semi-automated Clean-in-Place and Sterilize-in-Place functions can be configured for vessels, piping and other product-contact pathways.

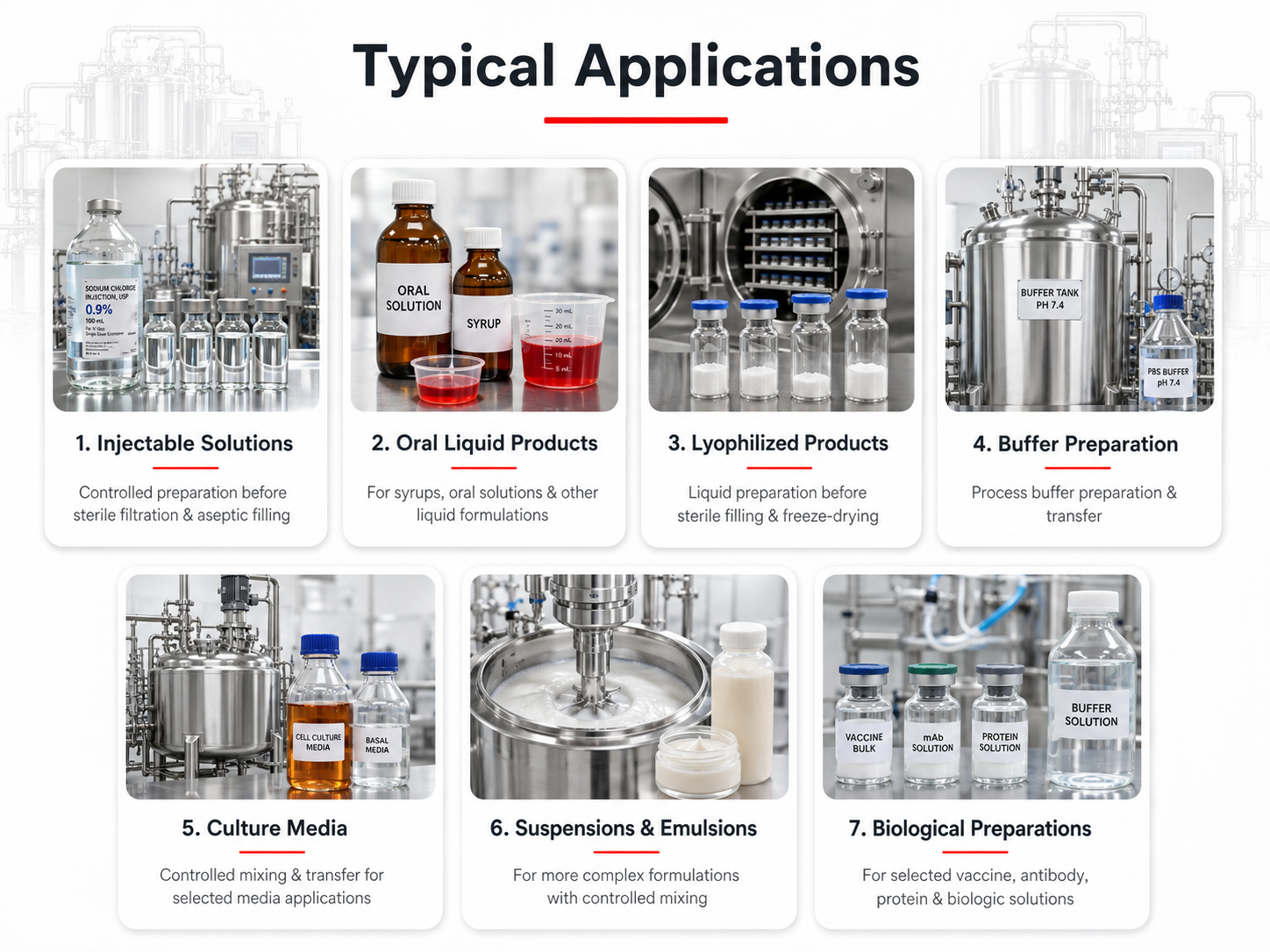

For controlled liquid preparation before sterile filtration and aseptic filling.
Suitable for syrups, oral solutions and other pharmaceutical liquid formulations.
For preparing liquid formulations before sterile filling and freeze-drying.
Supports preparation and transfer of process buffers used in pharmaceutical and biopharmaceutical manufacturing.
Suitable for selected media-preparation applications requiring controlled mixing and transfer.
Homogenization and controlled mixing can be configured for more complex formulations.
Suitable for selected vaccine, antibody, recombinant protein and other biological process solutions according to formulation requirements.
