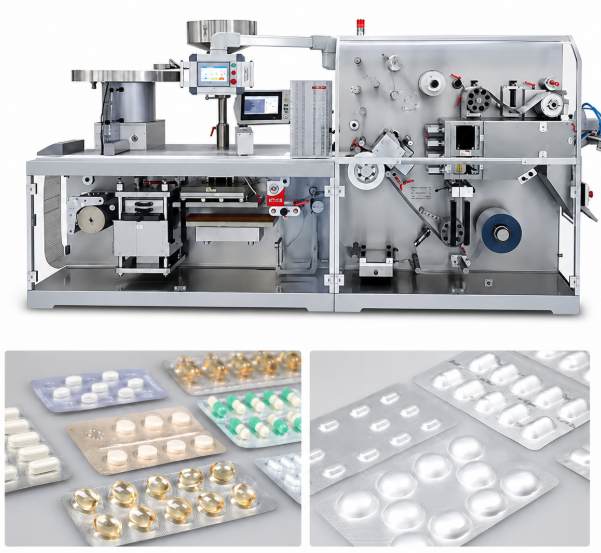

Alu-PVC packaging offers a practical balance between packaging cost, production efficiency and product visibility. It is suitable for large-volume pharmaceutical production and products with standard moisture- and light-protection requirements.
PVC rigid film is automatically unwound, heated and formed into consistent blister cavities according to the mold design.
Different feeders can be selected for tablets, capsules and pills. The feeding system can be customized according to product shape, size and orientation.
The servo-controlled traction system maintains accurate indexing between forming, sealing and punching stations.
Controlled temperature and pressure help create a consistent seal between the PVC blister and PTP aluminum foil.
Optional coding systems can print:
Batch number
Production date
Expiration date
Other traceability information
Available detection functions include:
Packaging-material shortage
Product shortage
Temperature abnormality
Motor overload
Machine fault alarm
Replaceable forming, sealing and punching molds allow the machine to package different products and blister layouts.
