You can notice how BFS and FFS machines are not the same. They package and fill things in different ways. BFS stands for Blow Fill Seal, while FFS stands for Form Fill Seal. The difference between BFS and FFS is that BFS makes and fills containers in one closed system, whereas FFS forms, fills, and seals packages using flexible materials. Understanding this difference helps you choose the best technology for producing sterile medicine. Maya provides everything you need in one place along with expert assistance.
Feature | Maya's Offering | Other Industry Leaders |
|---|---|---|
Yes | No | |
Professional technical guidance | Yes | Varies |
Table of Contents
BFS machines make, fill, and seal containers in one system. This keeps liquid medicines very clean and safe.
FFS machines use soft materials to form, fill, and seal packages. They can switch quickly between different products.
Pick BFS for clean and safe packaging of sensitive liquids. FFS works best for fast production of powders and solids.
BFS machines work in a controlled space to lower contamination risks. FFS machines also stay clean but may need extra cleaning steps.
Maya has both BFS and FFS machines. They give expert advice to help you choose the right technology for your needs.
BFS machines can make up to 7,000 containers each minute. FFS machines can make 100-200 packages per minute, depending on the type.
Both BFS and FFS machines are made to be efficient. BFS usually needs less space than FFS machines.
Maya's machines use many kinds of materials. This makes sure your products fit your needs and meet environmental rules.

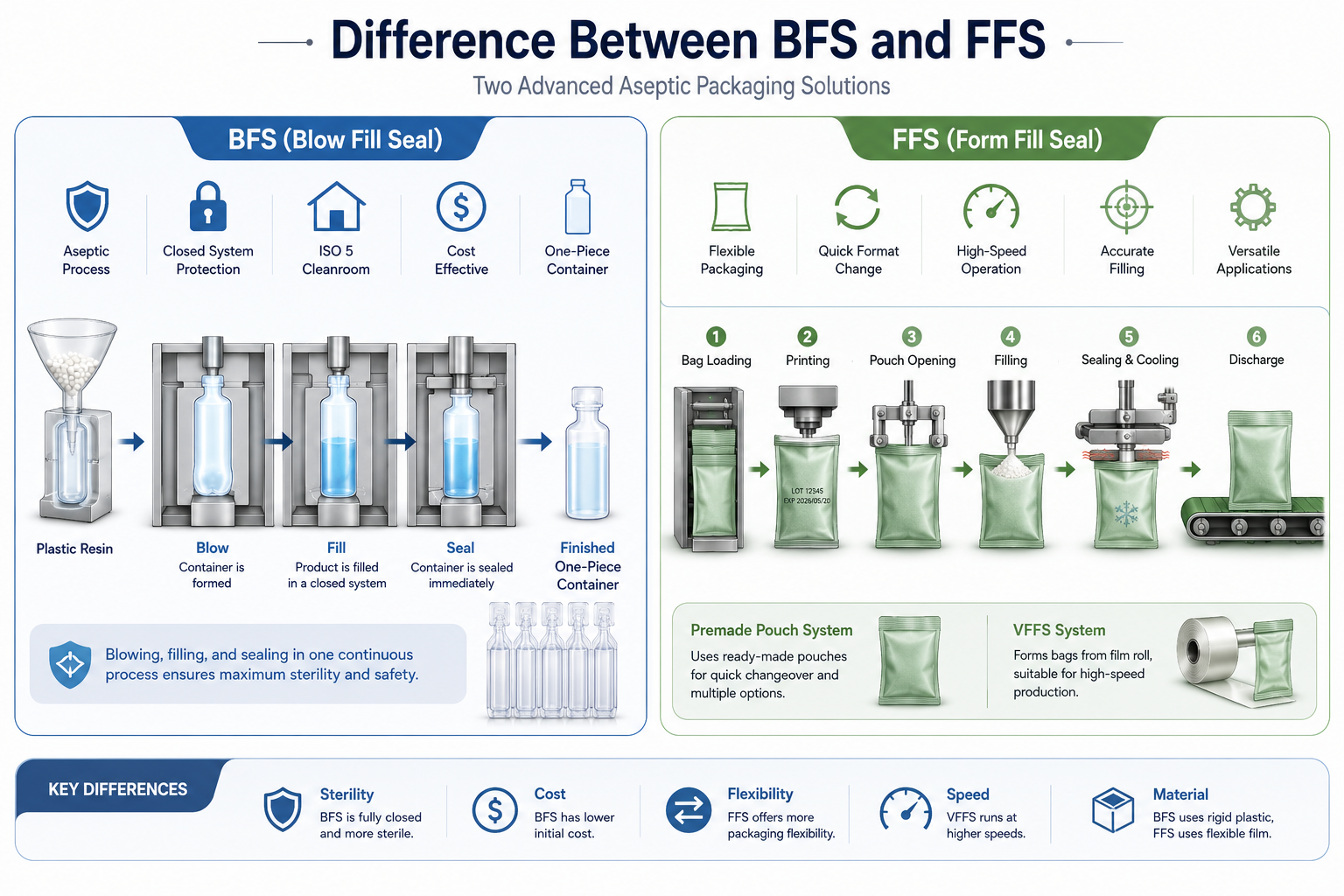

You can tell bfs and ffs are different by how they work. The blow fill seal method makes and fills containers in a closed system. The bfs process starts with plastic resin. The machine heats the resin and blows it into a mold. This forms a container. Right after, the machine fills the container with medicine or liquid. The system seals the container right away. This keeps everything clean and safe.
Shanghai Maya uses advanced bfs machines for filling lines. The process limits people from touching the product. The filling area stays closed while the machine works. The air and space are controlled, usually in an ISO 5 cleanroom. The bfs process makes a one-piece container with a safety seal. You can trust bfs for safe and low-cost packaging.
Feature | Description |
|---|---|
Aseptic Filling Process | Keeps products clean and lowers the risk of germs. |
Filling Zone Accessibility | People cannot reach the filling area during use. |
Environment Control | Filling happens in an ISO 5 cleanroom. |
Cost Advantage | BFS is a cheaper way to make clean packages. |
One-Piece Container | Makes a sealed container with a safety seal. |
The bfs process fills products in a clean place.
Containers are sealed right after filling to stop germs.
The design of bfs machines keeps people from touching the product.
Blowing, filling, and sealing happen in one step to lower risks.
You notice bfs and ffs are not the same when you see how form fill seal machines work. The ffs system forms, fills, and seals packages using soft materials like plastic film or ready-made pouches. The machine loads bags or rolls of film. It prints things like batch numbers and dates on the package. Mechanical grippers open the pouch. The machine fills the pouch with the product. After filling, the pouch is heat-sealed and cooled. The finished package moves out on a conveyor.
Shanghai Maya has ffs machines for many products. You can use ffs for liquids, powders, granules, and solids. The system lets you change products quickly. Premade pouch systems help you switch formats fast. VFFS systems make bags from a film roll and work at high speeds. Servo-driven systems give you better control and accuracy.
Step | Description |
|---|---|
Bag Loading | Ready-made bags are put into a magazine. |
Printing | Important data is printed on the pouch. |
Pouch Opening | Grippers open the pouch, and a zipper device opens zippers before filling. |
Filling | The product is put in using a dosing system, and a shaker settles the product. |
Sealing & Cooling | The pouch is heat-sealed and cooled to make it strong. |
Discharge | The finished product is sent out on a conveyor. |
Premade pouch systems use ready bags for quick changes and more choices.
VFFS systems make bags from film rolls and run faster but take longer to change.
Servo-driven systems give better control, use less energy, and let you change recipes fast.
You can see bfs and ffs are different in how they work, how much they do by themselves, and what they are used for. Blow fill seal machines do forming, filling, and sealing in one step. This gives high sterility and lowers the risk of germs. The system is best for clean medicine liquids. Form fill seal machines also work by themselves but may need extra steps for some products. You can use ffs for many things, like food, medicine, and other goods.
BFS keeps things clean while making containers. FFS needs extra cleaning steps for clean products. BFS machines can make up to 7,000 small containers each minute. FFS machines, like VFFS, can go faster, making 100–200 packages each minute. You can pack liquids, powders, granules, and solids with ffs. BFS is best for liquids and thick liquids. You change molds in bfs machines to make new shapes. FFS machines need different filling systems for different products.
Feature | BFS (Blow Fill Seal) | FFS (Form Fill Seal) |
|---|---|---|
Automation Level | Does forming, filling, and sealing in one step | Works by itself but may need extra steps |
Application | Used mostly for clean medicine liquids | Used for food, medicine, and other goods |
Sterility Assurance | Keeps things clean during making | Needs extra cleaning for clean products |
Production Speed | Makes up to 7,000 small containers per minute | Can go faster, 100-200 packages per minute |
Product Versatility | Good for liquids and thick liquids | Packs liquids, powders, granules, and solids |
Complexity of Changeover | Change molds for new shapes | Needs new filling systems for new products |
Tip: Pick bfs if you need very clean and safe packaging. Pick ffs if you want to pack many types of products quickly.

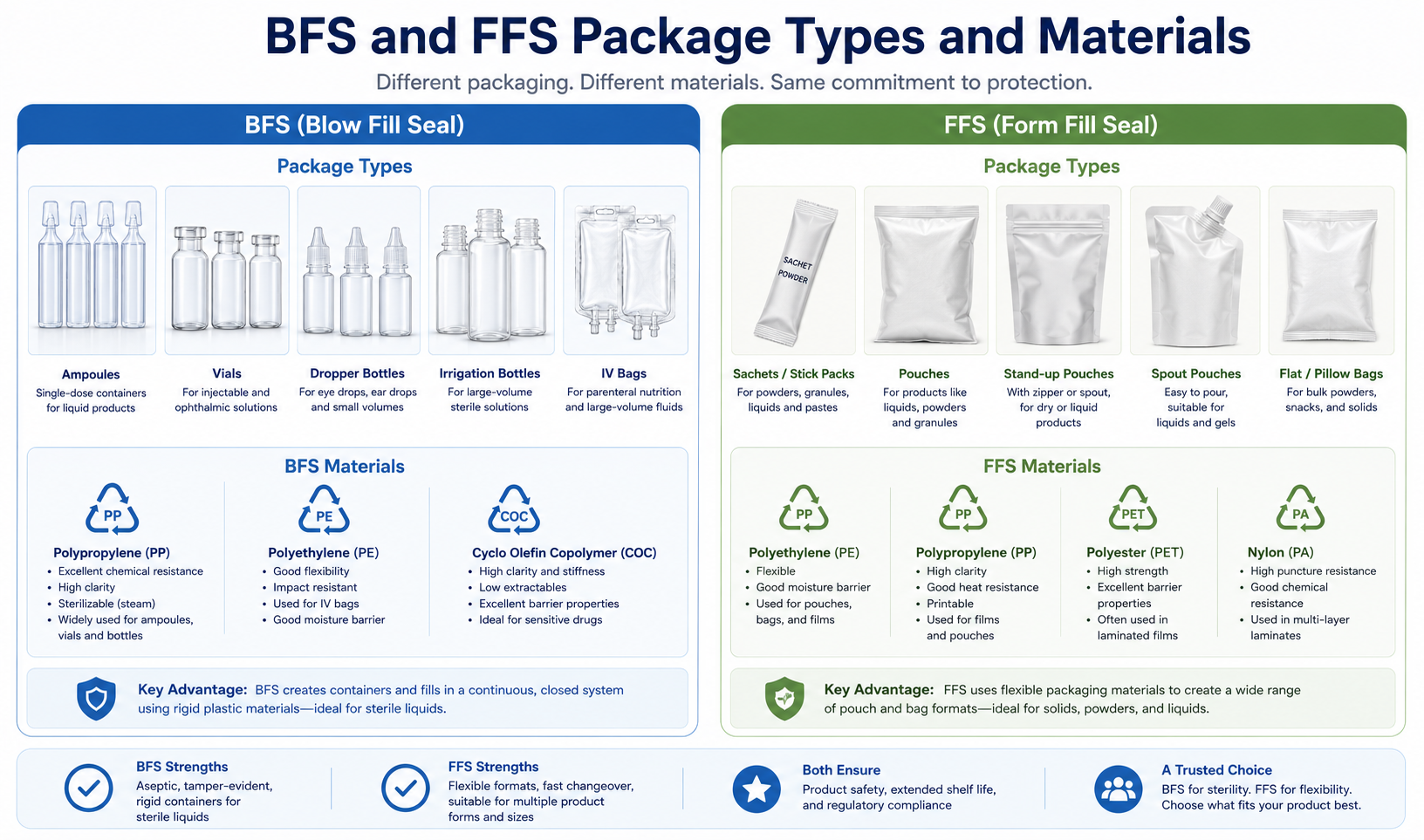

You can understand bfs and ffs by looking at how they work and what they do. Blow fill seal gives a closed, clean system for liquids. Form fill seal gives you speed and choices for many products. Shanghai Maya has both, so you can pick what fits your needs.
BFS machines give you many ways to package things. You can pick different bfs containers for what you need. Shuttle-type bfs machines let you swap molds fast. You can make containers from 5 ml to 1,000 ml. Rotary-type bfs machines are very quick. They can make up to 15,000 containers each hour. These are good for making lots of the same thing. Linear-type bfs machines are the most flexible. You can make special shapes and multi-chamber containers from 10 ml to 5,000 ml. Maya’s bfs lines help you choose the best machine for your product.
Type of BFS Machine | Production Rate (containers/hour) | Container Size Range (ml) | Key Features |
|---|---|---|---|
Shuttle-Type | 3,000 - 4,000 | 5 - 1,000 | Flexible mold changes for different shapes/sizes. |
Rotary-Type | Up to 15,000 | Under 50 | Fastest production, best for long runs of same product. |
Linear-Type | 2,000 - 3,000 | 10 - 5,000 | Most flexible for complex shapes and multi-chamber containers. |
Note: BFS containers can be single-dose vials, ampoules, or bottles with more than one chamber. This helps you match your packaging to your medicine.
FFS machines also give you lots of packaging choices. You can use ffs for liquids, powders, granules, or solids. FFS packages can be sachets, pouches, stick packs, or bags. You can pick vertical or horizontal ffs machines. Vertical ffs machines make bags from film rolls. Horizontal ffs machines use pouches that are already made. Maya’s ffs lines let you change formats quickly. You can print batch numbers and dates on each package. FFS packages are good for products that need soft packaging.
Liquids can go in sachets.
Powders can go in stick packs.
Pouches can hold granules or solids.
Tip: FFS machines let you change packaging styles fast. You can keep up with new products or market changes.
You need to know which materials work best for bfs and ffs. BFS uses special plastic resin for medicine. You get strong containers that keep medicine safe. Polyethylene and polypropylene are used a lot. These plastics fight off chemicals and keep things clean. FFS uses soft films like plastic, foil, or paper. You can pick what fits your product. Laminated films stop water from getting in. Foil keeps out light and air. Maya’s machines work with many materials. You can pick what is best for your product and packaging.
BFS works best with hard plastics for clean containers.
FFS uses soft films for easy-to-open packages.
You can count on Maya to help you pick the right materials for your filling line. You get safe, approved, and good packaging solutions.
BFS machines help keep products safe and clean. The process forms, fills, and seals containers in a closed system. This setup stops people from touching the product and lowers contamination risks. BFS machines work in a Class A environment. This keeps germs very low. Clean air flows in, and the machine controls each step. You get sterile liquids because the process supports unit-dose drops and sterile packaging. Cleaning in place (CIP) and sterilization in place (SIP) keep the system clean without taking it apart. Maya’s cleanroom solutions help you reach high sterility standards. BFS is trusted for sensitive products like eye drops and injectable medicines.
Feature | Description |
|---|---|
Operational Environment | Class 100 environment lowers the risk of germs. |
Cleaning In Place (CIP) | Cleans the system well without taking it apart. |
Sterilization In Place (SIP) | Tracks sterilization cycles for strong sterility assurance. |
BFS technology lowers the risk of contamination in sterile liquids.
The closed system protects your product from outside germs.
Better sterility testing helps check the quality of eye medicines.
FFS machines package many products while keeping them clean. FFS systems form, fill, and seal packages in a closed area. The critical zone stays at ISO Class 5. No one touches the product during production. Double HEPA filters keep the air clean and steady. You get 99.99% filtration efficiency. This protects your product from tiny particles in the air. FFS machines support vaporized hydrogen peroxide (VHP) cleaning between batches. This meets modern rules for sterile liquids. Maya’s isolator systems and cleanroom panels help you meet strict sterility needs.
Feature | Description |
|---|---|
Sterility Assurance | No human contact in critical zones, lowering contamination risk. |
ISO Class 5 Critical Zone | Fully closed filling and sealing area. |
Double HEPA Filtration System | 99.99% filtration efficiency with steady airflow. |
VHP Compatibility | Supports bio-decontamination between batches. |
FFS machines let you package liquids, powders, and solids with high sterility.
You can trust Maya’s ffs solutions for safe and proper production.
You need to know how bfs and ffs machines handle contamination risks. Both systems use advanced controls to protect your products. BFS limits contamination from people by controlling forming, filling, and sealing steps. FFS lowers contamination by keeping humans away from critical zones. Both systems manage environmental contamination with cleanroom standards. Airborne contamination stays low because of filters and regular checks. Polymer contamination is managed by careful storage and maintenance. Seal problems are handled with routine checks and risk-based maintenance.
Contamination Risk | Mitigation Strategy |
|---|---|
Operator-related contamination | Controls forming, filling, and sealing steps; keeps packaging materials clean; filters process gases; checks container integrity. |
Environmental contamination | BFS equipment is installed in at least a Grade D environment for sterilized products; Grade A conditions for critical zones in aseptic processing. |
Airborne contamination | Filters air or gases touching critical surfaces; checks gas quality and filter effectiveness regularly. |
Polymer contamination | Designs and maintains polymer storage and distribution to stop germs and particles. |
Seal integrity issues | Checks tools often, handles problems, and uses risk-based maintenance to keep seals strong. |
Maya’s cleanroom and isolator solutions help you lower contamination risks and keep your products safe.
BFS machines help you make lots of products fast. They form, fill, and seal containers in one step. This lets you make thousands every hour. Rotary-type bfs machines can make 6,000 to 20,000 units each hour. Linear-type bfs machines are also fast, but their speed depends on the line and product. BFS machines work well because people do not touch the product much. This lowers contamination risks.
Feature | Traditional Glass Technology | |
|---|---|---|
Production Process | Forms, fills, and seals in one step | Container and filling are separate steps |
Contamination Risk | Closed system keeps germs out | Manual handling brings more risk |
Footprint | Takes up less space | Needs more room |
Efficiency | Works very efficiently | Efficiency changes with how it is handled |
Maya’s bfs machines give you fast and efficient production. They also use less space.
FFS machines are also quick for packaging. They can handle liquids, powders, and solids. You can pick vertical or horizontal ffs machines. High-speed ffs machines make more than 120 packages each minute. Medium-speed ffs machines make 60 to 120 packages per minute. Low-speed ffs machines make up to 60 packages per minute. You can change the speed by picking different filling systems or package types.
Speed Category | Packages per Minute |
|---|---|
Low-Speed | Up to 60 |
Medium-Speed | 60 to 120 |
High-Speed | Above 120 |
Maya’s ffs machines let you set the speed to fit your product and market.
You need to think about space when picking bfs or ffs machines. BFS machines are small and fit into 100 to 200 square feet. FFS machines need more space, about 500 to 1,000 square feet. Rotary-type bfs machines use a round layout and save space. Linear-type bfs machines are longer and need more room. FFS machines can be horizontal or vertical, so they take up more space.
Machine Type | Typical Footprint (Square Feet) |
|---|---|
BFS | 100-200 |
FFS | 500-1000 |
BFS machines help you save space and keep things clean.
FFS machines are flexible but need more room for packaging and changes.
Maya’s high-speed lines help you work efficiently and use your space well.
You can compare bfs and ffs machines by looking at speed, efficiency, and space. BFS gives you fast production and a small layout. FFS lets you pack many products quickly but needs more room. Maya can help you pick the best system for your needs.
BFS machines help you make many kinds of containers. You can create small ampoules or bigger bottles. The system lets you change container types fast. You do not need to switch molds to do this. This saves time and helps you meet different needs. You can use BFS for liquids, gels, or other products. Maya helps you design containers for special uses.
Feature | Description |
|---|---|
You can pick shapes and sizes that fit your products. | |
Material Flexibility | You can use different materials without changing molds. |
Production Versatility | You can make many containers for lots of uses. |
You can choose from many container options.
You can meet the needs of medicine, health care, and cosmetics.
Maya’s BFS machines let you change your production line for new products or market needs.
FFS machines can package many kinds of products. They handle liquids, powders, and solids. You can pick blister packs, sachets, or stick packs. The design makes cleaning easy and keeps things safe. Stainless steel and clean seals help you follow rules. Advanced sealing keeps medicine safe and fresh. Maya’s FFS machines let you change packaging styles quickly. You can respond to new trends or customer requests.
Feature | Description |
|---|---|
Surfaces are easy to clean and seals keep things safe. | |
Advanced Sealing Technology | Keeps products safe and high quality. |
Versatile Packaging Formats | Handles blister packs, sachets, and other styles. |
You can switch between packaging styles easily.
You can keep your production line clean and follow rules.
Maya’s FFS solutions help you stay ready for new challenges.
You can change your production line fast with BFS and FFS machines. Both systems let you make different products. You can produce volumes from 0.1mL to 2000mL on one machine. Quick changeover lets you switch products fast. Maya’s machines use fill systems you can swap. You can change recipes or formats without waiting long.
Feature | Description |
|---|---|
Solutions for different product types. | |
Versatile Volume Options | Make products from 0.1mL to 2000mL. |
Quick Changeover Capabilities | Fill systems you can change for fast product swaps. |
You can adjust your production for new products or batch sizes.
You can cut downtime and work more efficiently.
Maya’s machine customization services help you build a production line that fits your business goals.
You need to think about money for machines. There are costs when you buy and costs to keep them running. BFS and FFS machines cost different amounts. FFS machines cost more to buy. FFS uses rollstock film, so material costs are lower. BFS machines cost less to buy but use pre-cut blanks, which cost more. FFS machines can make more packs each hour. BFS machines change formats faster, so you save time when switching products.
FFS (Form-Fill-Seal) | BFS (Blow-Fill-Seal) | |
|---|---|---|
Capital Investment | Higher | Moderate |
Material Cost | Lower (rollstock) | Higher (pre-cut blanks) |
Maximum Throughput | Up to 24,000 packs/hour | Up to 12,000 packs/hour |
Changeover Time | 45–90 minutes | 5–15 minutes |
Tip: Pick BFS if you want to change products often. Pick FFS if you need high speed and lower material costs.
Maya helps you plan your spending. You get advice to pick the best machine for your budget and needs.
You must follow strict rules to make medicine. BFS and FFS machines work in cleanrooms. You need a cleanroom with class 100,000 or better. Filling and sealing must happen in a class 100 area inside the machine. You must run media fill tests before making products for sale. These tests show your system keeps products safe and clean.
You need a cleanroom with class 100,000 or better.
Filling and sealing must be in a class 100 area.
You must run media fill tests before production.
Maya offers help with compliance and validation. You get support for cleanroom design, machine validation, and paperwork. This makes it easier to meet global standards.
You need to keep machines working well. BFS and FFS machines use recipe-driven settings and quick-change tools. These machines clean themselves with CIP and SIP routines. You spend less time and money on labor. You change formats faster with standardized designs. Glass bottle filling lines need more manual work and frequent changes.
Aspect | BFS/FFS Machines | Glass Bottle Filling |
|---|---|---|
Automation | Recipe-driven settings and quick-change tools | More manual work needed |
Labor | CIP/SIP routines lower labor costs | Higher labor costs because of manual loading |
Changeover Processes | Faster format changes with standard designs | Frequent changes needed for different formats |
Note: Maya’s machines use advanced automation. You spend less time on maintenance and get more reliable production.
You can trust Maya for maintenance, validation, and compliance. You get expert help to keep your production line running smoothly and meeting all rules.
BFS is used for many medicine products. It helps keep medicines clean and safe. You find BFS in injectable drugs, eyedrops, and antibiotics. BFS also packages antiseptics, inhalation drugs, ear drops, nasal drops, and water for injections. The process makes containers for eye drops and other liquids. You can package amounts from 0.2 ml to 30 ml. BFS uses a closed system to protect sensitive medicines. Unit-dose packaging keeps each dose safe and simple to use. Hospitals and clinics trust BFS for strict contamination control.
Injectable drugs
Eyedrops
Antiseptics
Antibiotics
Inhalation drugs
Ear drops
Nasal drops
Water for injections
BFS is important when you need clean packaging for liquid medicines. It supports many uses in the pharmaceutical industry.
FFS machines package many kinds of products. You use FFS for pill packets and sterile medical supplies. FFS also makes blister packs and diagnostic test kits. The system works with preformed pouches, stick packs, and single-serving condiments. FFS is used for medical devices and candy too. You can package solids, powders, and liquids in flexible ways.
Application Type | Products Packaged |
|---|---|
Pharmaceutical and Medical | Pill packets, sterile medical supplies |
Horizontal Bagging | Blister packs, diagnostic test kits |
FFS is good when you want to package many products fast. The system lets you change formats to fit market needs.
Preformed pouches
Stick packs
Blister packs
Medical devices
Single-serving condiments
FFS is used for medicines, food, and medical supplies. You get quick changes and fast production.
You need to think about how BFS and FFS affect the environment. BFS uses plastic resins to make strong containers. Many BFS containers can be recycled to cut down waste. FFS uses films like plastic, foil, and paper. You pick materials that fit your product and help the planet. Many FFS packages use recyclable or biodegradable films. You save energy by using efficient machines and processes. Maya helps you design lines that meet environmental standards. You get advice on picking materials and reducing waste.
You help the environment by using recyclable materials and efficient methods.
BFS and FFS are important for medicine packaging. Both systems keep products safe and help with sustainability goals.
You need a partner who knows about medicine production everywhere. Shanghai Maya gives you this help. Maya has over 12 years of experience. They have built advanced filling lines and cleanrooms for clients in almost 60 countries. You can find Maya’s projects in Asia, Africa, Europe, and the Middle East.
Maya helps you with each part of your project. You get consulting, design, manufacturing, installation, and after-sales support. Maya’s team works with you to make a solution that fits your product and market. You can pick vial filling lines, prefilled syringe lines, cartridge filling lines, and more. Maya also offers isolators, solution preparation systems, and water treatment systems. You get a complete, turnkey solution for your production needs.
Note: Maya’s turnkey approach means you do not have to handle many suppliers. You save time and lower your risk.
Here are some examples of Maya’s global work:
In Malaysia, there is a prefilled syringe filling line that meets strict rules.
In Bangladesh, Maya built a cleanroom project for making lots of medicine.
In Uganda, Maya finished a cleanroom turnkey project for a new factory.
In Algeria, Tanzania, Iran, Indonesia, and Malta, Maya helped clients build modern, safe production lines.
You benefit from Maya’s focus on quality and following rules. Every project meets international standards for sterility and safety. Maya’s validation services help you meet GMP and FDA requirements. You get full paperwork and support for audits.
Maya’s Global Project Highlights | Region | Solution Type |
|---|---|---|
Prefilled Syringe Line | Malaysia | Filling Line |
Cleanroom Turnkey Project | Uganda | Cleanroom Solution |
Pharmaceutical Cleanroom | Bangladesh | Cleanroom & Filling Line |
Modern Production Line | Algeria, Iran | Turnkey Pharmaceutical Lines |
You can trust Maya to give you reliable, efficient, and safe solutions. Maya’s technical team helps you from your first idea to your finished product. You get training, maintenance, and upgrades as your needs change.
When you pick Maya, you join a global group of successful medicine makers. You get a partner who cares about your success and your future.
BFS machines make, fill, and seal containers in one closed step. This keeps things very clean and safe from germs. FFS machines can pack many kinds of products in different ways. You should use BFS for very clean liquids and when you want to stop contamination. FFS is better if you need to work fast and use many package styles. Maya can help you with good advice and solutions for making medicine.
BFS machines make, fill, and seal containers in one step. FFS machines use soft materials to make and seal packages. BFS is best for clean liquids. FFS can pack many kinds of products.
BFS machines are best for clean medicine liquids. The closed system keeps your product safe from germs. Hospitals and clinics trust BFS for sensitive medicines.
FFS machines can pack powders and solids. They use sachets, stick packs, and pouches. You get many choices for packaging different products.
Both machines use clean rooms and strong filters. BFS uses a closed system to stop germs. FFS uses ISO Class 5 zones and HEPA filters to keep things clean.
BFS machines make containers from 0.2 ml to 5,000 ml. FFS machines make sachets, pouches, and stick packs in many sizes. You pick the size that fits your product.
Maya gives full help for customizing machines. Maya helps you design filling lines, pick materials, and change machines for your needs.
You use recipe settings and quick-change tools. CIP and SIP routines clean machines by themselves. You spend less time on maintenance and keep production steady.
You can use recyclable materials with both machines. Maya helps you pick eco-friendly options and design efficient lines. You cut waste and help the planet.
