A blister packaging machine is special electric equipment. It makes safe pockets. It fills product inside. It seals the covers tightly. Big fields use this fast tool. These include medicine, food, and health. Electronics and hardware use it too. It keeps goods very safe.
Market demand for this tool grows fast globally:
Metric Year / Parameter | Market Value / Rate |
|---|---|
2025 Valuation | USD 30.73 Billion |
2026 Valuation | USD 32.69 Billion |
2035 Projection | USD 57.14 Billion |
CAGR (2026–2035) | 6.4% |
Table of Contents
Blister packaging machines make safe pockets. They pack products. They seal covers tight.
Machines warm plastic first. They shape pockets. They pack items. They seal covers. They cut cards.
Systems use thermoforming heat. This works for clear plastic. They use cold forming pressure. This shapes foil.
Smart cameras check every pack. They toss out empty items. They toss out broken items.
Plants choose manual machines. They pick semi-automatic machines. They choose automatic machines. It depends on goals. It depends on budgets.
Blister packs shield pills. They shield food. They protect batteries. They protect hardware. They stop moisture. They stop air. They stop light. They stop tampering.
A modern blister packaging machine runs four main steps. First, it heats base plastic. This forms strong pockets. Next, feeders drop items into pockets. Then, hot dies seal protective foil. This covers open cavities. Finally, knives cut long strips into packs.
Key Performance Insight: Fast industrial units make 600 packs per minute. Smart sensors check quality in real time. Connected systems track machine work.
Industrial lines use special metal parts. These parts are custom molds and sealing dies. Precision punches are also needed. Servo motors run these parts smoothly. PLC controllers help direct the work.
Station Name | Key Hardware | Operational Role |
|---|---|---|
Forming Station | Heating plates, molds, air injectors | Softens plastic film. It shapes cavities. |
Feeding Station | Vibratory bowl, sensors, hopper | Sorts raw goods. It fills pockets. |
Sealing Station | Heated dies, silicone pads, PID system | Locks lidding foil. It covers cavities. |
Punching Station | Cutting press, rotary knives, waste chute | Cuts blister cards. It works cleanly. |
Hot plates warm incoming plastic film. Smart heat sensors keep warm air steady. This softens the plastic evenly.
Warm plastic enters custom mold cavities. Air pushes plastic into pocket shapes. Cold plates freeze the hard shape fast.
Vibratory feeders take items from hoppers. Metal chutes slide goods into pockets. Optical sensors spot empty pockets quickly.
Hot dies apply heat to foil. Rubber pads give balanced pressure. This action makes tight safe seals.
Sharp blades press moving plastic webs. The tool trims rough edges nicely. It drops finished blister cards onto belts.
A basic line turns rolls into filled packs. It uses automatic steps.
Rollers feed plastic web into machines. Heating plates warm the plastic film. This heat softens the film. It makes film flexible. Smart sensors track heat levels. This stops burning or bad warming.
Forming units shape film into pockets. Pockets hold specific items. Makers pick thermoforming or cold methods. Product needs set this choice.
Thermoforming uses heat on soft plastic. Plug rods push plastic inside molds. Compressed air pushes plastic onto cold walls. Cold walls cool plastic quickly.
Cold forming shapes foil without heat. Metal punches press foil into dies. This cold stamping shields delicate drugs. It blocks light and water well.
Operational Note: Cold foil blocks all air and wetness. Plastic lets buyers see items easily.
Special feeders load items into pockets. They run at fast speeds. Fast systems line up items safely. They do not break fragile goods. An automated blister packaging machine uses special feeders. They keep high speeds and accuracy.
Mechanism Type | Operating Speed / Capacity | Accuracy & Defect Rates | Operational Description |
|---|---|---|---|
Brush Feeder | Up to 200–400 cycles/min | 99.7–99.9% fill rate | Brushes sweep pills into pockets using gravity. |
Vibrating Track Feeder | Tuned per capsule geometry | Enhanced orientation control | Vibrating tracks move soft gels smoothly into place. |
Vacuum Suction Nozzles | High-speed lines (>300 cycles/min) | >99.9% fill accuracy | Vacuum suction nozzles pick pills into pockets. |
Photoelectric / Camera Vision | Real-time web scanning | Instant defect detection | Vision systems scan rows for missing pills. |
Good feeders drop tablets into pockets. Cameras scan rows right away. They find empty spots before sealing.
Sealing stations seal items inside safe pockets. Rollers push top covers onto plastic bases. Hot tools and strong pressure turn on special glue. They use foil or card paper. Air tubes push hot metal blocks hard. This action blocks wet air and dust completely.
Sealing systems use two main methods:
Platen Sealing: Flat hot plates press everything at once. It works great for flat metal packs.
Rotary Sealing: Hot wheels roll over moving strips fast. It fits fast plastic packing lines best.
⚠️ Quality Check: Bad heat ruins the whole seal. Low heat makes seals fall apart. High heat burns good paper.
New lines check every single card early. Sharp camera vision scans every pocket. Light sensors check pill shapes and colors. Cameras spot bad pills or missing parts fast. Air arms drop bad packs away.
Fast printers add track numbers right away. Ink sprays print manufacturing details clearly.
Data Type | Primary Function | Industry Standard |
|---|---|---|
Batch Number | Shows precise factory run groups | GS1 Standards |
Expiration Date | Shows safe product use dates | FDA Guidelines |
2D DataMatrix Code | Tracks items along shipping routes | Anti-Counterfeiting Laws |
Die cutting finishes all machine work. Heavy tools chop long sheets into cards. Sharp metal blades cut plastic easily. Punches make round corners and tear lines.
Rollers pull trash web into waste rolls. Air tubes suck extra metal bits quickly. Belts move clean packs to box machines. Fast cutters make thousands of cards non-stop.
Plants pick machine builds based on space. They also check output goals.
Shops pick tiers based on budget limits. These choices fit product needs.
Machine Tier / Automation Level | Typical Output Capacity (Blisters/Min) | Typical Application |
|---|---|---|
Tier 1: Manual / Semi-Automatic | 10–40 | R&D, small batch, clinical trials, niche products |
Tier 2: Automatic (Entry / Mid-Range) | 60–150 | Commercial scale, growing generic manufacturers |
Tier 3: High-Volume Automatic | 200–400+ | Large-scale, high-volume generic & multinational operations |
Workers load items by hand. This basic tool fits small labs. It also works for clinical trials.
These models mix hands-on loading with auto-sealing. Operators load materials. Air tubes run even seals.
Full systems run alone. Smart sensors track film feeds. They guide pocket forming. They load pills fast. They trim finished packs.
Layout choices save clean room space. They make work easy.
Shuttle units use small frames. Drawers move back and forth. Heating heads stay still. This design saves floor area.
Inline tools process web rolls straight. Carousel units spin around center points. Both connect easily to cartoners.
Sealing setups set line speed. They affect pocket shapes. They match sheet types.
Technical Parameter | Continuous Motion Configuration (Rotary) | Intermittent Motion Configuration (Flat Plate) |
|---|---|---|
Operational Mechanism | Material advances through continuously spinning drums/rollers for forming, sealing, and cutting. | Web advances step-by-step using a linear indexing movement. |
Production Speed & Output | Designed for high-speed, continuous multi-shift production and high-volume output. | Optimized for medium-speed lines, offering lower theoretical output but high operational stability. |
Sealing & Pressure | Continuous contact sealing; demands tight continuous monitoring of pressure, temperature, and foil tension at high speeds. | Platen sealing applies direct, uniform, and higher sealing pressure, yielding superior sealing integrity. |
Forming & Material Handling | Suitable for thermoforming materials like standard PVC/PVDC; sensitive to complex cavity designs at high speed. | Delivers superior cavity definition and stability for complex shapes and cold-formed Alu-Alu packaging. |
Tooling & Changeover | Tooling alignment and synchronization are intricate, increasing changeover duration for multi-SKU lines. | Tooling design is mechanically simpler, allowing faster and easier format changeovers. |
Maintenance Profile | Features continuous rotary parts, increasing long-term wear monitoring and alignment demands. | Mechanically straightforward, though intermittent indexing forces can produce cyclical impact stress. |
Rotary tools use spinning hot drums. They seal foil onto plastic bases.
Speed and Efficiency: Roller sealing makes 500 cards fast. It runs without stopping.
Footprint Optimization: Spinning drums process sheets vertically. This cuts machine length by 40%.
Flatbed tools use hot flat plates. They press full sheets bit by bit.
Mechanical Force: Flat plates give strong pressure. They hold seals longer. This forms deep foil pockets well.
Tooling Efficiency: Flat systems use easy parts. Operators change setups fast. Choosing a good blister packaging machine relies on these needs.

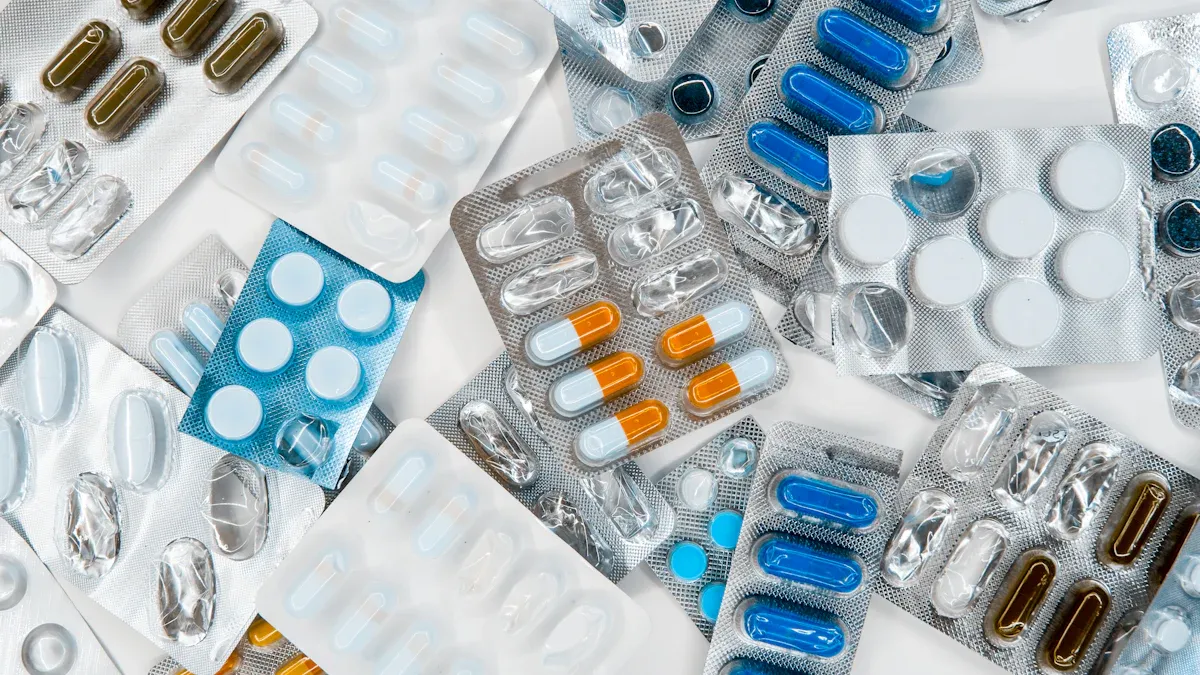

Makers pick pack items to protect goods. Base films make safe pockets. Cover sheets seal tops tightly.
Base films form bottom pockets. Teams check clarity and strength first.
Physical Criterion | Thermoforming Plastics | Cold-Forming Aluminum Base Webs |
|---|---|---|
Moisture Vapor Transmission Rate (MVTR) | Higher permeability (0.5 to 5+ g/m²/day) | Impermeable near-zero performance (<0.05 g/m²/day) |
Oxygen Permeability | Moderate transmission rates | Virtually zero oxygen transmission |
Light Protection | Partial to none | Complete 100% barrier against light |
Pack Transparency | Fully transparent for easy inspection | Completely opaque with a metallic silver look |
Polyvinyl chloride (PVC) is clear base film. Plain PVC lets water air through easily. Added layers block wet air much better.
Base Film Material | Moisture Barrier Performance | Oxygen Barrier Performance |
|---|---|---|
PVC | Moderate protection; inadequate for sensitive drugs | Limited protection |
PVDC-Coated PVC | High protection (improves moisture resistance 5–10 times) | Enhanced/Superior protection |
Aclar® (PCTFE) + PVC | Ultra-low permeability / Premium high protection | Premium high protection |
Coated PVC stops wet air very well. Double-sided coats protect drugs in hot regions.
Polyethylene Terephthalate (PET) is clear and strong. Shops swap PVC for green PET options.
Cold-forming aluminum webs use metal sheets. This stamped foil blocks light, water, air.
Polypropylene (PP) blocks water and harsh chemicals. PP needs careful heat control during forming.
Top sheets seal pockets to keep goods inside.
Pharma lidding foils use thin metal sheets. Push-through packs offer many sheet thickness choices. Dairy lines use thick foils for high pressure. Custom jobs use very thick foil sheets.
Hot glue locks foil onto base films:
Heat-Seal Coating Material | Chemical Base / Application System | Key Characteristics & Common Applications |
|---|---|---|
Polyester-Based Resins | Solvent-based systems | Offers high bond strength; ideal for demanding pharma packs. |
Acrylic-Based Lacquers | Water-based systems | Environmentally friendly option; delivers good visual clarity. |
Ethylene Vinyl Acetate (EVA) | Hot melt / Extrusion | Works well with paper or board substrates; seals paper containers. |
Cardboard backs give strong support for stores. Users push items through paper slots fast. Cardboard takes bright colorful prints easily.
A blister packaging machine serves many global fields. Factory teams tune this blister packaging machine well. It meets strict rules and exact sizes.
Pharma fields drive strong blister packaging machine sales. Strict safety rules speed up global sales fast.
Region / Country | Dominant Industries Driving Demand |
|---|---|
North America | Pharmaceuticals, Healthcare |
United States | Pharmaceuticals (Largest overall user) |
United Kingdom | Pharmaceuticals, Consumer Health, Retail |
Germany | Pharmaceuticals, Chemical Industry |
France | Pharmaceuticals, Cosmetics |
Pharma plants need an auto blister packaging machine. This blister packaging machine keeps delicate items clean.
Pharma lines pack solid pills into single cards. Flat tools push pills into safe pockets smoothly. Users track daily doses easily. Foil blocks wet air completely.
Compliance Note: Single cards stop bad doses in hospitals.
Liquid drugs need gentle handling steps. A special blister packaging machine forms deep trays. Robot arms set glass tubes into soft pockets. These trays stop breaks during shipping.
Stores use clear packs to show items.
Vape markets need very safe packs. A blister packaging machine seals batteries tightly. Thick foil blocks small children. Tight seals stop juice leaks.
Food plants use a specialized blister packaging machine. It measures exact food portions easily.
Customization Aspect | Feature / Mechanism | Operational Benefit |
|---|---|---|
Dosing & Filling | Ceramic pump integration | Enables precise, quantitative liquid and food portion control, minimizing waste and maintaining uniform specifications. |
Product Shaping | Tailored food molds | Accommodates distinct shapes (e.g., chocolates, candies, cookies) for aesthetic presentation and higher product value. |
System Flexibility | Swappable molds and filling units | Allows a single machine to adapt to multiple food packaging requirements with high hygiene and efficiency. |
Hardware plants use a strong blister packaging machine. It locks heavy items for store racks.
Battery makers use strong packs for display:
Tailored Cavities: A blister packaging machine shapes custom pockets. It holds small parts safely in view.
Punch Holes: Sharp blades punch top holes for store racks.
Tamper Resistance: Hot tools seal plastic onto cards firmly.
Makers pack steel screws inside thick plastic. Deep custom pockets group parts neatly. Clear covers show precise screw sizes.
Blister packs block environmental threats effectively. High-barrier forming materials protect sensitive compounds against humidity, light, and air.
Barrier Level | Moisture Absorption Behavior | Impact on Product Degradation & Shelf Life |
|---|---|---|
High Barrier (e.g., PVC/Aclar) | Water stays out of the pack. | Drugs stay fresh for long times. |
Low Barrier (e.g., standard PVC) | Water moves inside the pocket easily. | Wet air ruins delicate drugs fast. |
Advanced materials provide four critical defense layers:
Moisture vapor defense: Special sheets stop wet air.
Oxidation resistance: Air seals stop chemical damage.
Photolytic defense: Dark layers block bright light.
Contamination control: Tight seals block dirty dust.
Blister cards provide built-in visual security. Broken foils immediately reveal unauthorized product access. Specialized engineering features also protect young children while helping elderly users.
Mechanical Feature | Functionality & Mechanism | Security / Safety Objective |
|---|---|---|
Tool-Accessible Compartments | Hard covers need scissors to open. | Kids cannot open battery packs. |
Dual-Side Compression Backing Card | Users squeeze both sides together. | Small hands cannot open packs. |
Built-in Tear Strips and Tabs | Paper tears off very easily. | Cuts show open packs fast. |
Safety Standard: Built-in tear strips and structural locks provide visual tampering proof directly on packaging cards without external shrink bands.
Plants review technical metrics before buying machines. Smart tools raise output speed fast. High production speed cuts build times easily. Fast output expands real plant capacity quickly.
Operators evaluate key engineering factors using specific operational standards:
Engineering Factor | Key Evaluation Criteria |
|---|---|
Target Output Speed | Check speed using real product shapes. |
Film Compatibility | Run tests using exact film types. |
Regulatory Jurisdiction | Check paper rules for global markets. |
Tooling and Changeover | Swap parts fast without using tools. |
Choosing an optimal blister packaging machine requires careful assessment of total cost of ownership. Production teams analyze mold expenses, continuous output needs, and tooling flexibility. A modern blister packaging machine ensures maximum operational uptime across high-volume factory lines.
A blister packaging machine keeps goods safe during shipping. Factory teams look at three key things when buying tools:
Production volume needs
Material options
Machine floor space
Industry Trend: Digital computer tools and eco materials shape new machines.
Plant engineers should ask tool experts for help. They build custom lines well.
Thermoforming warms plastic sheets. It shapes clear pockets. Cold forming presses aluminum foil. It shapes dark pockets without heat. Thermoforming shows items clearly. Cold forming blocks light and wet air.
Pharma shops pack pills inside cards. Food makers pack small butter portions. Hardware shops pack batteries and screws safely.
Material Flexibility: Smart tools run PVC, PET, and metal foils.
New automatic units handle many base sheets. Users swap heat parts and forming tools.
Fast cameras scan pockets before sealing starts. Sensors spot empty spots and broken pills fast. Auto arms toss bad packs away quickly.
| Key Speed Factor | Influence on Machine Output | | : | : | | Sealing Design | Spinning drums run faster than flat plates. | | Cavity Depth | Deep pockets take more shaping time. | | Feeding Style | Smart camera feeders load items fastest. |
Quick locks let workers swap tools fast. Mechanics change molds, tracks, and plates quickly. Swappable parts cut machine stop times greatly.
