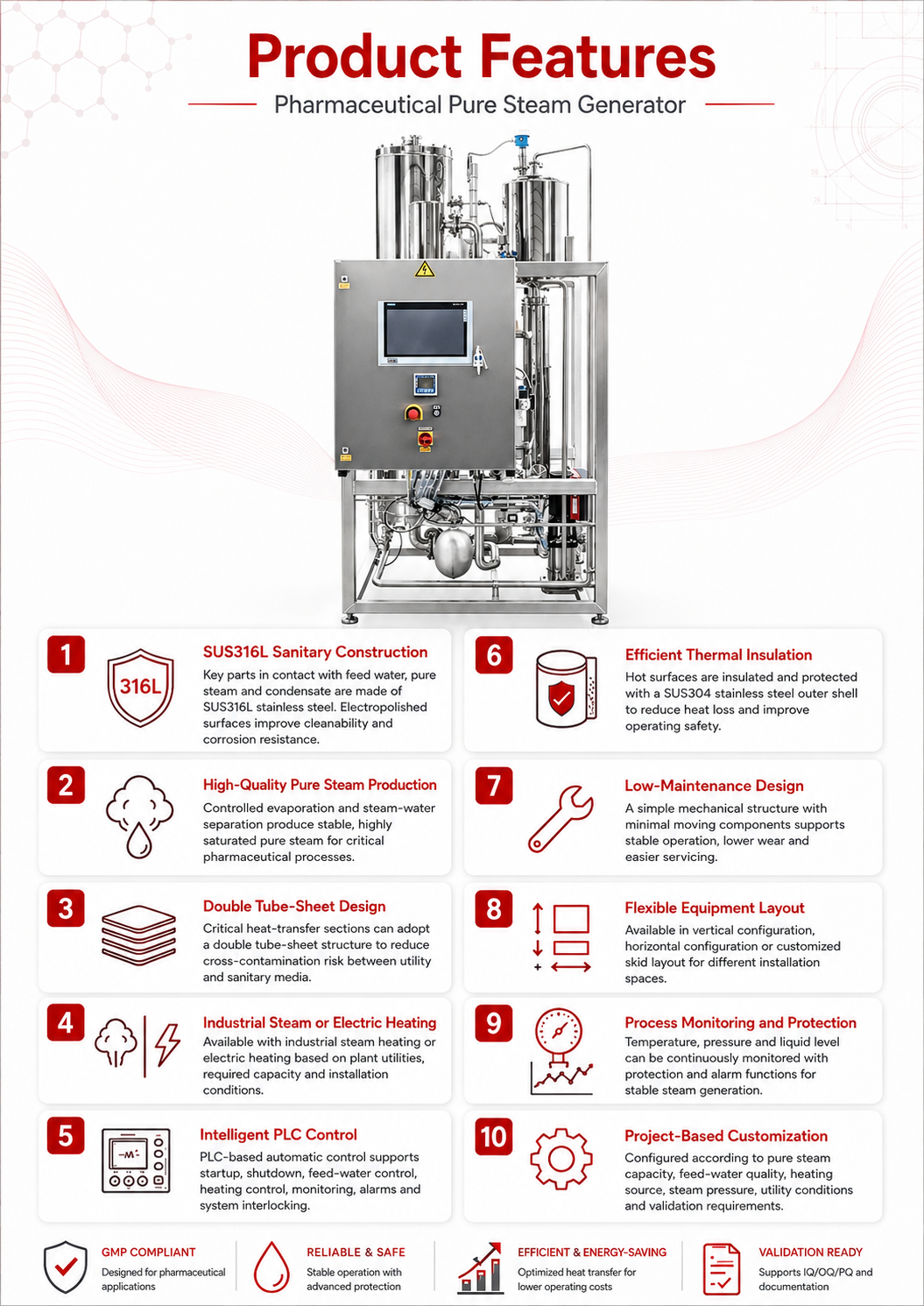

A pharmaceutical pure steam generator is specialized equipment used to convert qualified feed water into high-purity steam for direct-contact sterilization and sanitary applications.
Unlike ordinary plant steam, pure steam is generated through a sanitary process designed to minimize contamination from particles, microorganisms, endotoxins and process utilities.
The generated steam can be supplied directly to critical equipment and process lines where steam quality has a direct impact on sterile manufacturing.
Sterilization in Place (SIP)
Pharmaceutical tanks and vessels
Bioreactors and fermentation equipment
Process piping systems
Sterile filters
Autoclaves
Lyophilizers
Filling-line sterilization
Clean pharmaceutical process equipment
Biotechnology production facilities
Parameter | Specification |
|---|---|
Feed Water | Purified Water |
Heating Method | Industrial Steam / Electric Heating |
Product-Contact Material | SUS316L Stainless Steel |
Surface Treatment | Electropolishing |
Outer Shell | SUS304 Stainless Steel |
Steam Type | High-Purity Saturated Steam |
Configuration | Vertical / Horizontal |
Control System | PLC Automatic Control |
Operation Mode | Automatic / Manual |
Monitoring | Temperature / Pressure / Liquid Level |
Safety Protection | Alarm & Interlock |
Steam-Water Separation | Integrated |
Double Tube-Sheet Design | Available |
Thermal Insulation | Available |
FAT / SAT | Supported |
IQ / OQ Documentation | Available According to Project |
Customized Design | Supported |
Pure steam demand varies significantly between pharmaceutical facilities.
Before equipment selection, the following information should be confirmed:
Required pure steam capacity
Required steam pressure
Feed-water quality
Available industrial steam pressure
Electrical utilities
Number of sterilization points
Peak steam consumption
Continuous or intermittent operation
Installation space
Required validation documentation
Based on these conditions, the generator can be configured with an appropriate heating method, evaporation capacity, control system and equipment layout.
