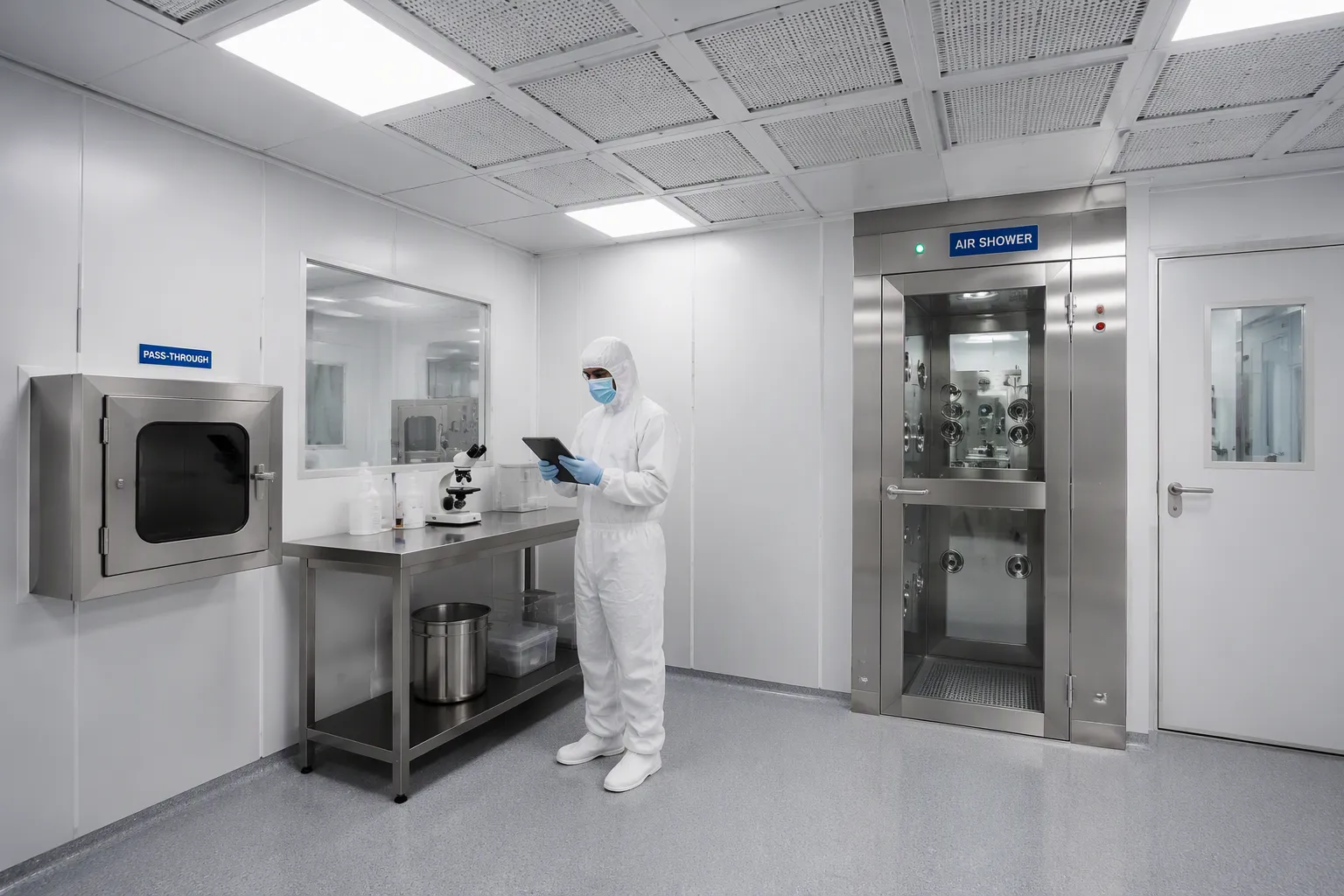

A modular cleanroom is a prefabricated, customizable controlled environment built using pre-engineered wall panels, ceilings, filtration systems, and other components assembled on-site.
Unlike traditional cleanrooms constructed largely from raw materials at the project site, modular cleanrooms use factory-manufactured components that can simplify installation, maintenance, and future modifications.
They are widely used in pharmaceutical manufacturing, biotechnology, medical device production, and other contamination-sensitive industries.
This guide explains how modular cleanrooms work, their main components, design options, benefits, costs, and key considerations when choosing a system.
Table of Contents

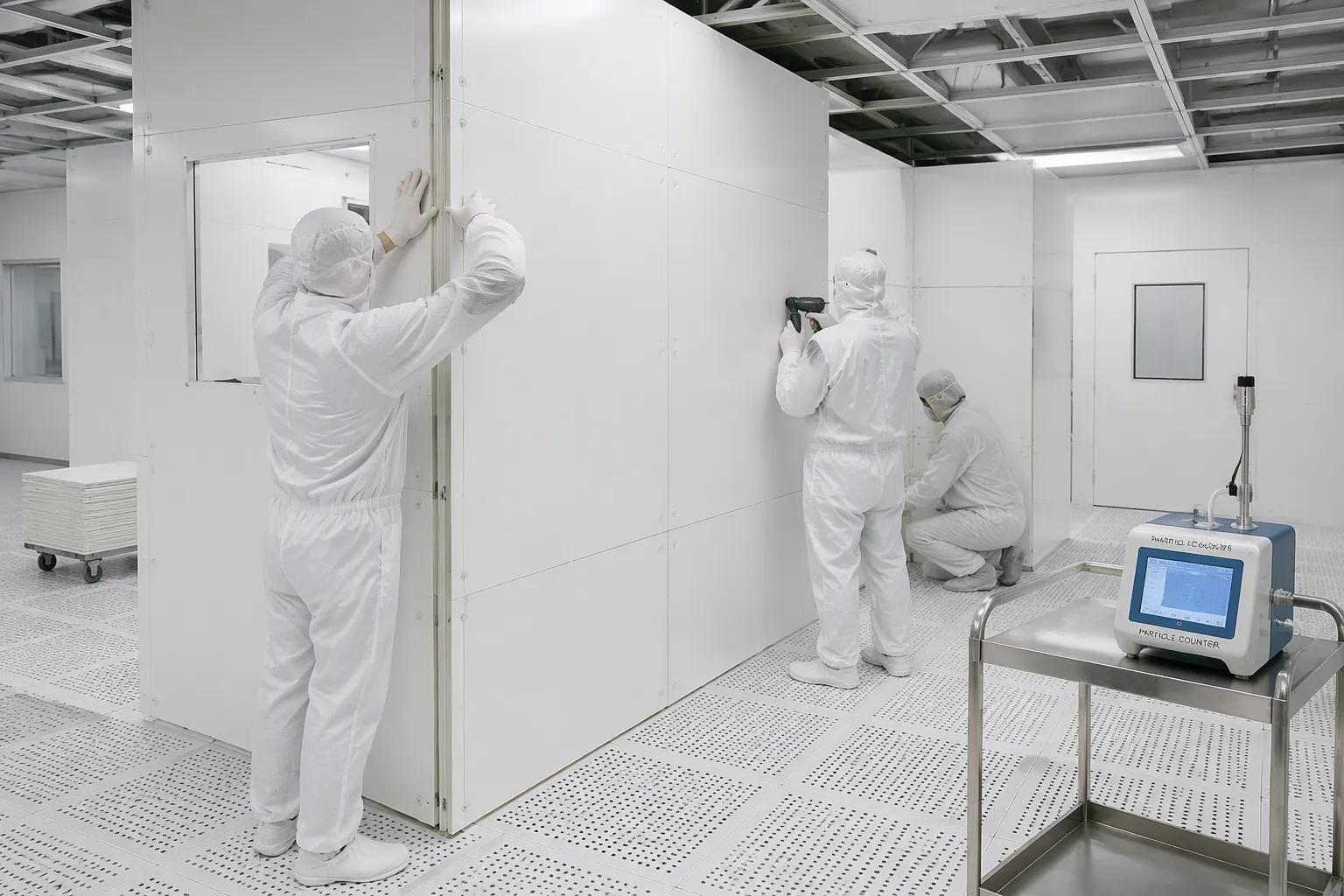

A modular cleanroom creates a controlled manufacturing environment by combining a sealed enclosure with engineered air filtration, airflow management, and environmental monitoring.
Its main purpose is to maintain the required level of cleanliness while controlling environmental conditions such as temperature, humidity, and room pressure.
Modular cleanrooms are usually built from several interconnected systems:
Prefabricated wall and ceiling panels form the cleanroom enclosure.
HVAC and filtration systems control airborne particles and environmental conditions.
Airlocks and pass boxes manage personnel and material movement.
Lighting and electrical systems support manufacturing operations.
Monitoring systems verify environmental performance.
The required design depends on the manufacturing process, cleanliness classification, and applicable regulatory requirements.
According to ISO 14644-1:2015, cleanrooms are classified based on airborne particle concentrations at specified particle sizes.
For pharmaceutical applications, additional GMP requirements may apply, particularly when sterile products or components are exposed during manufacturing.
A modular cleanroom consists of several prefabricated components designed to create an enclosed, cleanable, and contamination-controlled space.
Prefabricated panels form the main structure of a modular cleanroom. They are manufactured to project specifications and assembled on-site using compatible framing and sealing systems.
Common panel options include:
Panel Material | Main Characteristics | Typical Considerations |
|---|---|---|
Powder-Coated Steel | Durable, smooth, cleanable surface | Pharmaceutical production areas |
Stainless Steel | Corrosion resistance and chemical compatibility | Areas requiring frequent cleaning |
Aluminum Honeycomb | Lightweight and structurally efficient | Specialized modular construction |
Rock Wool Sandwich Panel | Thermal insulation and potential fire-performance benefits | Projects with specific building requirements |
PU/PIR Sandwich Panel | Thermal insulation and lightweight construction | Projects requiring insulated enclosures |
Material selection should consider cleaning chemicals, fire requirements, structural loads, insulation, surface durability, and regulatory expectations.
The suitability of each panel must be confirmed against its actual specifications rather than relying on material type alone.
The HVAC system controls air supply, filtration, temperature, humidity, and pressure within the cleanroom.
Depending on the application, modular cleanrooms may incorporate:
Air handling units (AHUs)
HEPA filtration systems
Fan filter units (FFUs)
Supply and return air ducts
Pressure control devices
Temperature and humidity sensors
The required airflow volume depends on cleanliness targets, particle generation, equipment layout, personnel activity, and contamination control requirements.
There is no single universal air change rate for all modular cleanrooms.
Cleanroom doors, personnel airlocks, and pass-through chambers help control contamination transfer between adjacent areas.
Personnel airlocks provide controlled entry and gowning arrangements, while pass boxes support material movement without unnecessary personnel traffic.
Depending on the process, interlocked doors, pressure monitoring, and access controls may also be incorporated.
Additional components help support the cleanroom's operational requirements.
Flooring should be appropriately cleanable and resistant to expected operating conditions. Lighting must provide sufficient visibility without creating unnecessary maintenance or contamination risks.
Environmental monitoring may include airborne particle measurements, room pressure, temperature, humidity, and microbiological monitoring when required.
For pharmaceutical projects, these systems should be integrated into the facility design rather than selected independently.

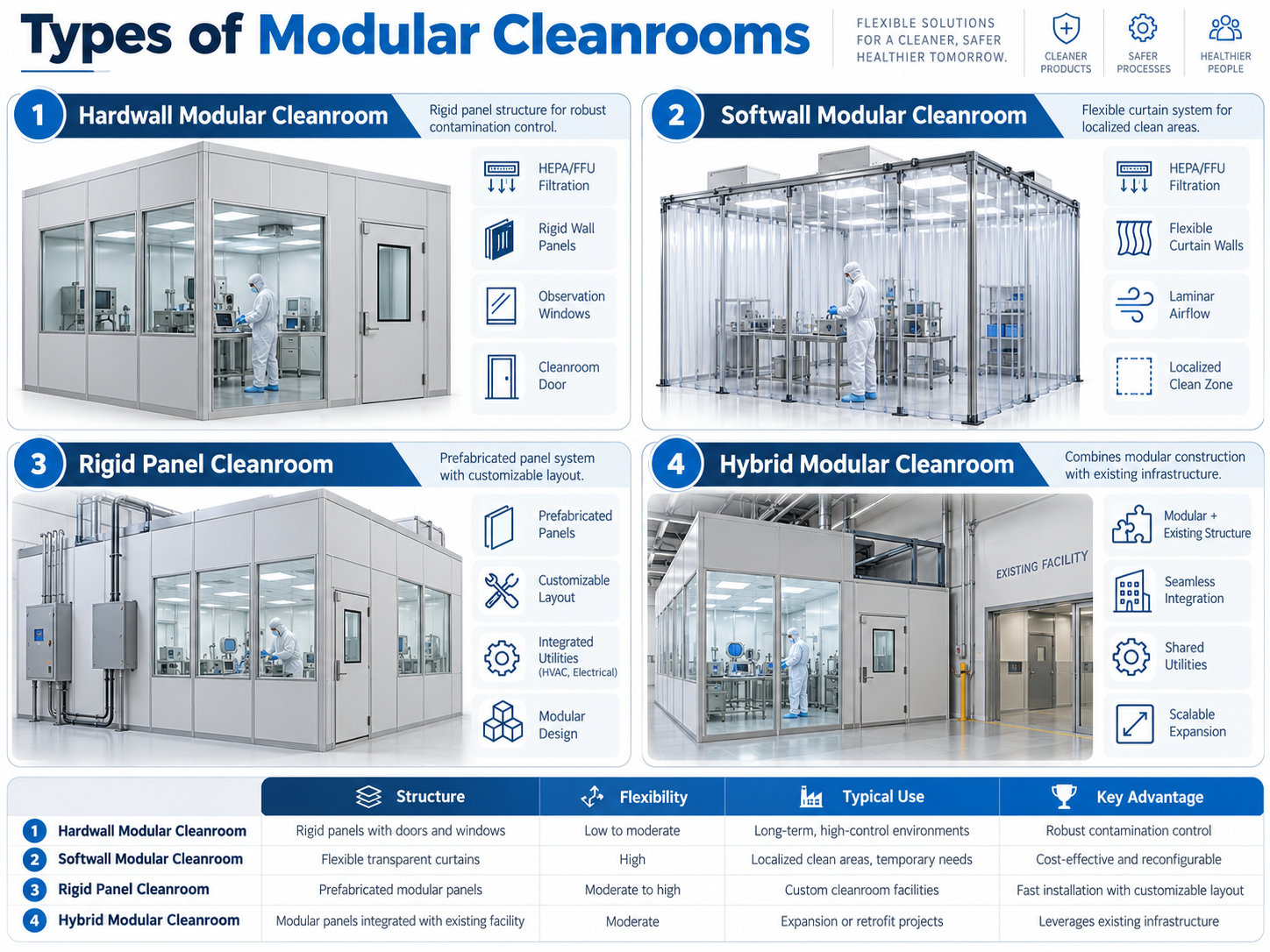

Modular cleanrooms are available in different configurations, depending on their intended applications and construction requirements.
Hardwall cleanrooms use rigid wall panels and sealed structural components to create a relatively enclosed controlled environment.
They are commonly considered for pharmaceutical manufacturing, medical device production, and facilities requiring robust environmental control.
Advantages include durable construction, cleanable surfaces, and the ability to integrate doors, airlocks, and utilities.
Softwall cleanrooms use flexible curtain-style barriers around a supporting frame, often with overhead filtration.
They may be suitable for localized, contamination-sensitive operations where a fully enclosed hardwall cleanroom is unnecessary.
However, softwall systems generally offer different levels of environmental separation and pressure control. Their suitability for pharmaceutical GMP applications must be carefully evaluated.
Rigid panel systems combine prefabricated wall and ceiling assemblies with customizable doors, windows, service connections, and filtration equipment.
Hybrid designs may incorporate modular cleanroom construction together with existing building elements or specialized process enclosures.
These arrangements are useful when facilities require integration with existing production infrastructure.
Cleanroom Type | Structure | Main Advantage | Typical Application |
|---|---|---|---|
Hardwall | Rigid enclosed panels | Robust environmental separation | Pharmaceutical production |
Softwall | Flexible curtain barriers | Flexible localized clean zone | Selected assembly and laboratory processes |
Rigid Panel | Prefabricated panel system | Customizable layout and integrated services | Cleanroom facilities of various sizes |
Hybrid Modular | Combination of modular and existing structures | Adaptability to site constraints | Facility upgrades and expansions |
The appropriate system should be selected based on the required environmental performance, not simply installation convenience.
Both modular and traditional cleanrooms can be designed to meet specified cleanliness classifications.
The main differences involve construction methods, installation flexibility, and future modifications.
Factor | Modular Cleanroom | Traditional Cleanroom |
|---|---|---|
Construction | Prefabricated components assembled on-site | Predominantly constructed on-site |
Installation | Can reduce certain on-site construction activities | More construction activities completed at the facility |
Customization | Configurable panel dimensions and integrated components | Flexible architectural construction |
Expansion | May support panel replacement and reconfiguration | Changes may require more extensive renovation |
Relocation | Possible with suitable system designs | Usually less practical |
Maintenance | Components may be individually accessible or replaceable | Depends on construction methods |
ISO/GMP compliance | Requires suitable design and qualification | Requires suitable design and qualification |
Prefabrication can shorten certain construction stages because components are manufactured before arriving at the installation site.
In some projects, factory fabrication and site preparation can occur simultaneously.
However, total project duration still depends on engineering approval, manufacturing schedules, HVAC installation, utility connections, commissioning, and qualification.
Therefore, modular construction should be evaluated based on the complete project schedule rather than panel assembly time alone.
Modular construction can reduce some on-site labor and future modification costs, but it is not always the least expensive option.
Cost depends on the cleanroom size, required classification, materials, HVAC system, utilities, equipment integration, and qualification scope.
A complete project quotation should include both initial construction and long-term operating considerations.
Modular cleanrooms offer several practical advantages for manufacturers developing new facilities or upgrading existing production areas.
Prefabricated panel systems can support changes to room configurations, equipment locations, and personnel or material flow.
Where compatible with the original design, sections may be expanded or reconfigured as production requirements change.
However, modifications affecting environmental performance require appropriate reassessment and potentially requalification.
Factory-manufactured components can reduce the amount of cutting, finishing, and other construction work performed on-site.
This is particularly useful when installing cleanroom systems within existing buildings or operating manufacturing facilities.
Modular construction allows room panels, doors, ceilings, filtration, and utilities to be coordinated during the design stage.
This can simplify installation interfaces and help identify potential conflicts before construction begins.
Depending on system design, modular components may be easier to access, repair, or replace than permanently constructed building elements.
The actual maintenance advantages depend on panel connections, available spare parts, and the accessibility of installed systems.
Modular cleanrooms can be designed for different industries, with environmental requirements determined by the manufacturing process.
Pharmaceutical Manufacturing
Used in selected sterile and non-sterile production operations where controlled airborne contamination is necessary. Applications may include aseptic filling and pharmaceutical preparation areas.
Biotechnology Facilities
Supports contamination-sensitive biological processes, laboratory activities, and selected sterile product manufacturing operations.
Medical Device Manufacturing
Used for manufacturing operations where particulate contamination could affect device quality or downstream processing.
Electronics and Precision Manufacturing
Provides particle-controlled production environments for sensitive components, optical products, and electronic assemblies.
The required cleanroom class is not determined by the industry alone. Different operations within the same facility may require different environmental controls.
Modular construction does not automatically establish ISO classification or GMP compliance.
A modular cleanroom must be designed, tested, and qualified for its intended application.
Under ISO 14644-1, cleanroom classes are determined by airborne particle concentration.
ISO Class | Maximum Particles ≥0.5 µm/m³ |
|---|---|
ISO 5 | 3,520 |
ISO 6 | 35,200 |
ISO 7 | 352,000 |
ISO 8 | 3,520,000 |
These values describe particle cleanliness and should not be interpreted as complete requirements for sterile pharmaceutical manufacturing.
For more information about critical cleanroom applications, see our article on When Do You Need an ISO 5 Cleanroom?.
For sterile medicinal product manufacturing, EU GMP Annex 1 establishes additional expectations for cleanroom design, contamination control, personnel practices, monitoring, and qualification.
A modular cleanroom intended for GMP-regulated production must support these requirements through its engineering design and operating procedures.
Appropriate qualification may include DQ, IQ, OQ, and PQ activities together with relevant cleanroom performance testing.
Modular cleanroom projects normally involve several coordinated stages, from initial requirements assessment to qualification and final handover.
01
Requirement Assessment
Define intended processes, cleanliness targets and regulatory requirements
02
Engineering Design
Prepare room layout, HVAC design, material specifications and utility requirements
03
Component Fabrication
Manufacture panels, structural components and selected cleanroom equipment
04
On-Site Installation
Assemble the enclosure and integrate HVAC, electrical and monitoring systems
05
Testing & Qualification
Verify installed systems, airflow, filtration, classification and operational performance
06
Handover & Maintenance
Provide relevant documentation, operating procedures and maintenance arrangements
The exact sequence may vary according to the project scope, building conditions, and manufacturing requirements.
Choosing the right modular cleanroom supplier requires more than comparing panel prices.
Pharmaceutical manufacturers should evaluate the supplier's engineering capabilities, cleanroom project experience, HVAC integration, and qualification support.
Evaluation Area | What to Confirm |
|---|---|
Process Requirements | Can the design support your intended manufacturing operations? |
Cleanroom Classification | Can the system achieve the required cleanliness level? |
Panel and Material Quality | Are materials suitable for cleaning, durability, and applicable building requirements? |
HVAC Integration | Are filtration, airflow, and pressure systems included in the engineering scope? |
Equipment Integration | Can the layout accommodate pharmaceutical production lines? |
Qualification Support | Are commissioning, testing, and qualification documents available? |
Future Expansion | Can the system be modified if production requirements change? |
Before requesting a quotation, prepare basic project information such as cleanroom dimensions, intended use, target classification, equipment layout, and expected production capacity.
These details help suppliers develop a more accurate engineering proposal.
Marya provides cleanroom engineering, prefabricated cleanroom components, and integrated pharmaceutical facility solutions.
Our services cover cleanroom design, equipment selection, HVAC integration, installation, and qualification support according to project requirements.
For pharmaceutical manufacturers, we can coordinate cleanroom planning with production equipment and facility utility systems.
Our solutions include:
Custom cleanroom layout and engineering design
Modular cleanroom materials and structural components
HVAC and air filtration system integration
Cleanroom equipment and accessories
Installation and commissioning services
Qualification and technical documentation support
Marya also provides Cleanroom Project Solutions for pharmaceutical and other contamination-sensitive manufacturing facilities.
For an example of our cleanroom engineering experience, explore the Ethiopian Pharmaceutical Cleanroom Project, which involved cleanroom design and environmental control systems for a veterinary pharmaceutical manufacturing facility.
Planning a modular cleanroom project? Contact Marya to discuss your required cleanliness classification, production layout, HVAC design, and customized cleanroom solutions.
Installation time depends on cleanroom size, design complexity, site readiness, and equipment integration. Prefabrication may shorten on-site assembly, but the complete project must also include HVAC installation, commissioning, testing, and qualification.
Yes. A modular cleanroom can be engineered to meet ISO 5 airborne particle limits. Achieving the required classification depends on the filtration system, airflow design, enclosure integrity, and successful testing.
Yes, when appropriately designed, constructed, qualified, and operated. Modular construction alone does not guarantee GMP compliance. Pharmaceutical manufacturers must also meet applicable process and contamination control requirements.
Some modular cleanroom systems can be expanded, reconfigured, or relocated. Feasibility depends on the original design, panel connections, HVAC capacity, utility systems, and building conditions. Changes may require requalification.
Hardwall cleanrooms use rigid enclosed panels, while softwall systems use flexible curtains around a supporting structure. Hardwall systems generally provide stronger physical separation and may be better suited to more demanding facility requirements.
Cost depends on cleanroom area, required classification, panel materials, HVAC capacity, utilities, and qualification scope. A complete quotation should include engineering, equipment, construction, commissioning, and operating considerations.
Manufacturers should provide intended application, cleanroom size, target classification, production equipment requirements, site conditions, and any applicable GMP or regulatory requirements.
A modular cleanroom provides a prefabricated and customizable approach to building contamination-controlled manufacturing environments.
Its main advantages include flexible construction, integrated engineering, and the potential for easier future modifications.
However, cleanroom performance depends on the complete system design, including filtration, airflow, environmental monitoring, and qualification.
For pharmaceutical manufacturers, choosing a modular cleanroom supplier with experience in both cleanroom engineering and production equipment integration can help support a more coordinated facility project.
