A Cleanroom HVAC System is a specialized heating, ventilation, and air conditioning system engineered specifically for controlled environments.
Unlike conventional commercial HVAC systems that primarily focus on occupant comfort, cleanroom HVAC systems must simultaneously control multiple critical environmental parameters:
Airborne particle concentration
Temperature
Relative humidity
Air change rate
Airflow direction
Room pressure
Fresh air volume
Return and exhaust air

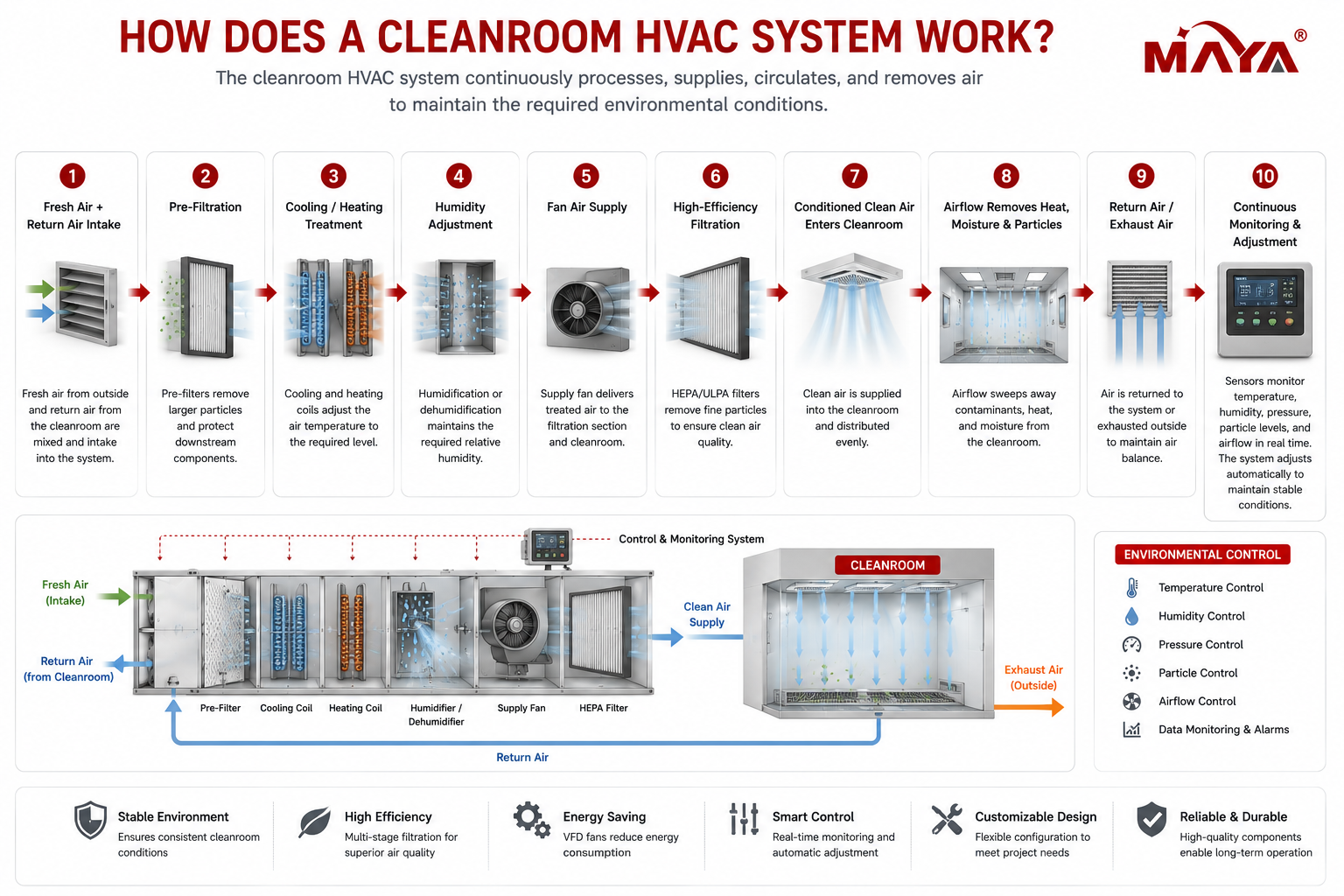

The system continuously treats and circulates conditioned air to compensate for heat, moisture, particles, and pressure disturbances generated by personnel, production equipment, materials, and external environments.
This makes the HVAC system one of the core infrastructures determining whether a cleanroom can maintain stable operating conditions.
Incoming and recirculated air passes through multiple filtration stages before being supplied to controlled areas.
The filtration system helps:
Remove airborne particles
Reduce contamination entering clean areas
Protect sensitive production processes
Maintain required cleanliness levels
Filter pressure monitoring can also be integrated to help operators identify filter loading and maintenance requirements.
Cooling and heating components regulate supply air temperature according to production and personnel requirements.
Stable temperature helps:
Maintain consistent process conditions
Improve personnel comfort
Reduce thermal fluctuations
Protect temperature-sensitive materials
Humidity regulation is especially important for pharmaceutical, semiconductor, biotechnology, and battery manufacturing environments.
Depending on process requirements, the system can integrate:
Humidification
Cooling dehumidification
Deep dehumidification
Specialized low-humidity solutions
Controlled pressure differentials help manage airflow movement between rooms.
Used when the clean area must be protected from contaminants entering from adjacent lower-cleanliness areas.
Used when potentially hazardous materials must be contained within a controlled room.
The pressure strategy can be customized according to production processes and room zoning requirements.
Proper airflow organization helps remove airborne contaminants generated inside the cleanroom.
Depending on the application, airflow systems can support:
Unidirectional airflow
Mixed airflow
Turbulent airflow
Localized clean airflow
Airflow distribution is designed according to room geometry, equipment arrangement, personnel flow, and cleanliness requirements.
Fresh air is introduced to maintain indoor air quality and compensate for exhaust and leakage.
Exhaust systems remove:
Excess heat
Moisture
Process emissions
Unwanted gases
Contaminated air
This creates a continuously controlled air balance within the cleanroom.
