Cleanroom Cargo Air Shower Room

Product Overview:
Efficient Material Decontamination
Designed to remove dust particles, fibers, and surface contaminants from goods, pallets, equipment, and production materials before cleanroom entry.
HEPA Filtered High-Speed Airflow
Uses powerful airflow and adjustable nozzles to effectively clean cargo surfaces and reduce contamination risks.
Controlled Transfer Protection
Creates an isolated purification chamber between non-clean and clean areas with automatic interlocking doors.
Intelligent Operation System
Equipped with PLC control, automatic operation, and high-efficiency filtration for stable performance.
Customizable Modular Design
Supports customized sizes and structures according to cargo dimensions, transportation methods, and cleanroom layouts.
Wide Industrial Applications
Suitable for pharmaceutical, semiconductor, biotechnology, food processing, and precision manufacturing industries.


Availability:



Inquire Add to Basket

Product Description

Technical Parameters

key Features

Why Choose MAYA

Product Description

A Cleanroom Cargo Air Shower Room is a specialized transfer system designed for cleaning materials before they enter classified clean areas.

It acts as a controlled transition chamber between:

Non-clean Area → Cargo Air Shower → Cleanroom

During operation, HEPA-filtered air is delivered through multiple adjustable nozzles to remove contaminants from cargo surfaces. The contaminated air is then filtered and continuously circulated inside the chamber.

This process helps:

Prevent contamination entering cleanrooms
Protect sensitive manufacturing processes
Improve cleanroom cleanliness levels
Reduce production risks caused by particles

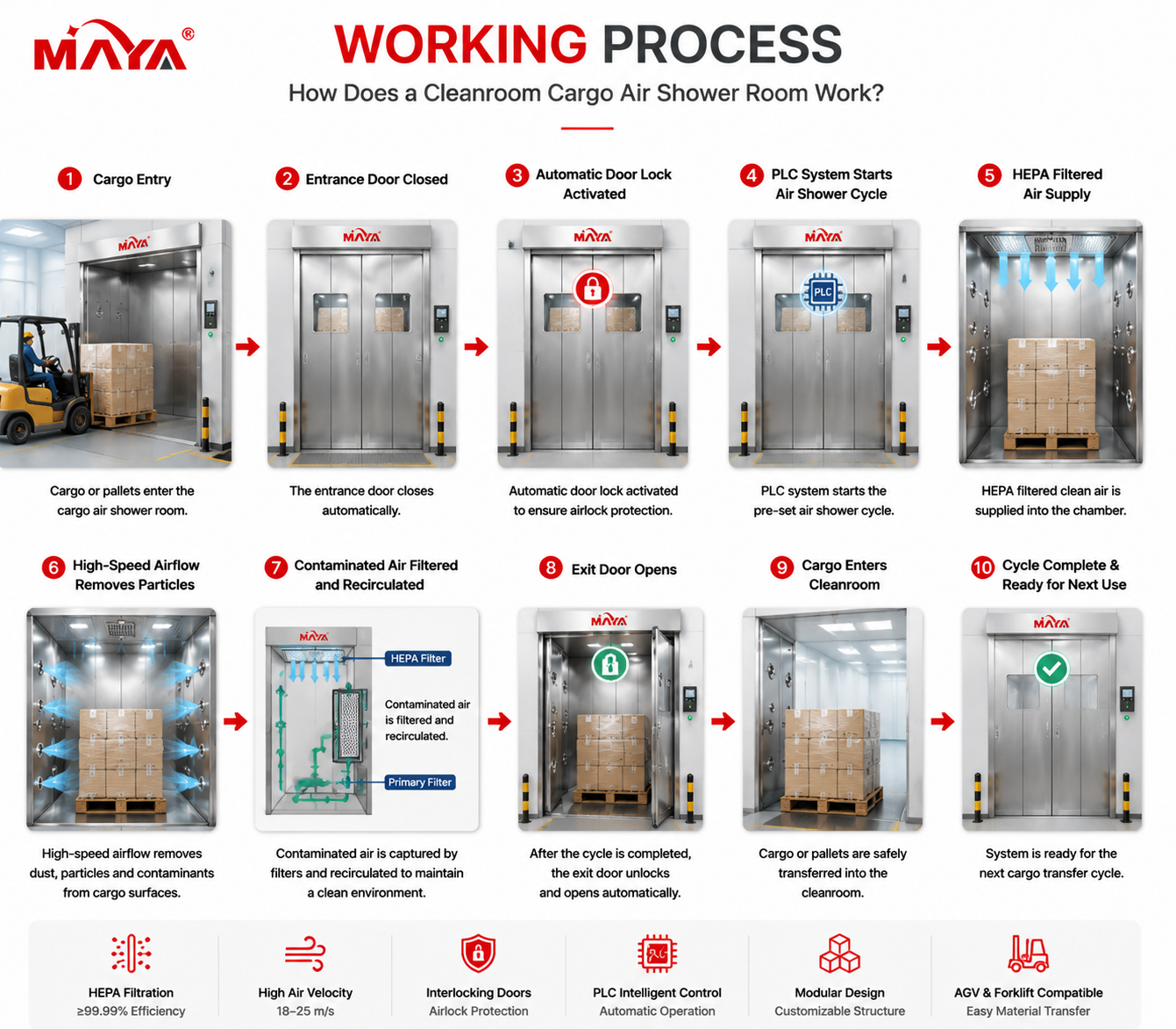

Cleanroom Cargo Air Shower Room working process showing cargo entry, HEPA air shower cleaning, particle removal and cleanroom transfer

Technical Parameters

Parameter	Specification
Product Name	Cleanroom Cargo Air Shower Room
Application	Material and cargo decontamination
Structure Material	SUS304 / SUS316L / Steel Plate
Air Velocity	18-25m/s
Nozzle Wind Speed	Up to 25m/s
Filtration System	Primary + HEPA Filter
Filtration Efficiency	≥99.99%
Control System	PLC Intelligent Control
Operation Mode	Automatic
Shower Time	10-99s Adjustable
Door Type	Sliding Door / Rolling Door
Sensor Type	Infrared Sensor
Structure Type	Modular Design
Configuration	Straight / L / T / U Type

Product Features

1. Powerful Airflow Cleaning Performance

The system uses high-volume centrifugal blowers and adjustable nozzles to generate airflow up to 25m/s.

Benefits:

Strong particle removal capability
Suitable for large cargo surfaces
Efficient cleaning of uneven structures

2. Advanced Filtration System

The cargo shower room adopts a two-stage filtration structure:

Primary filtration
HEPA high-efficiency filtration

Advantages:

Stable air quality
High purification efficiency
Reduced contamination risk

3. Flexible Cargo Transfer Design

The modular structure supports customized dimensions according to:

Cargo size
Factory layout
Traffic volume
Transportation method

Compatible with:

Pallets
Forklifts
AGVs
Production equipment

4. Smart Control and Monitoring

PLC intelligent control provides:

Automatic operation
Adjustable blowing time
Status monitoring
Door interlock control

5. Safe and Reliable Operation

Safety features include:

Emergency stop button
Anti-collision structure
Tempered glass observation windows
Automatic door protection

Why Choose Shanghai Maya?

Shanghai Maya specializes in cleanroom contamination control equipment and provides customized air shower solutions for pharmaceutical, semiconductor, laboratory, and industrial applications.

With professional engineering capabilities and advanced manufacturing technology, Maya supports customers in building efficient and reliable cleanroom transfer systems.
